Sagging Roof Frame and Masonry Crack Repair

Updated at: 29/01/2025

Sagging roof frames and masonry cracks are common structural issues that can significantly compromise the safety and integrity of a building. These problems, often stemming from age, weathering, foundation settlement, or improper construction, can range from unsightly blemishes to serious safety hazards. Ignoring these issues can lead to escalating damage, costly repairs down the line, and even catastrophic failure. Understanding the causes and implementing appropriate repairs is crucial for maintaining a structurally sound and aesthetically pleasing property.

This article provides a comprehensive guide to diagnosing and repairing both sagging roof frames and masonry cracks, offering practical solutions for homeowners and property managers alike. We will walk you through a step-by-step process, from identifying the source of the problem to implementing effective and long-lasting repair solutions, ensuring the structural integrity and longevity of your building.

Preparation and Safety Guidelines

Tools Needed
  • Jacking Contraption
  • String
  • 2x8 lumber
  • Cement
  • Grinding Tool
  • Slab (for filling crack)
Safety Guidelines
  • Never attempt major structural repairs yourself. Sagging roof frames and masonry cracks can indicate serious structural damage requiring professional assessment and repair by licensed contractors. Improper repairs can worsen the problem and endanger lives.
  • Always ensure the area is properly secured and stabilized before beginning any inspection or work. This includes using appropriate safety equipment like hard hats, safety glasses, and fall protection if working at heights. Unstable structures pose a significant risk of collapse.
  • Before starting any work, contact your local building authorities to determine if permits are needed and to ensure your repairs comply with building codes. Ignoring regulations could lead to legal issues and further compromise the building's safety.

Step-by-Step Instructions

  1. Problem Identification and Assessment

    • Sagging roof frame and a resulting crack in the masonry.
    • Determining the extent of the sag and the crack.
    • Measuring the sag.

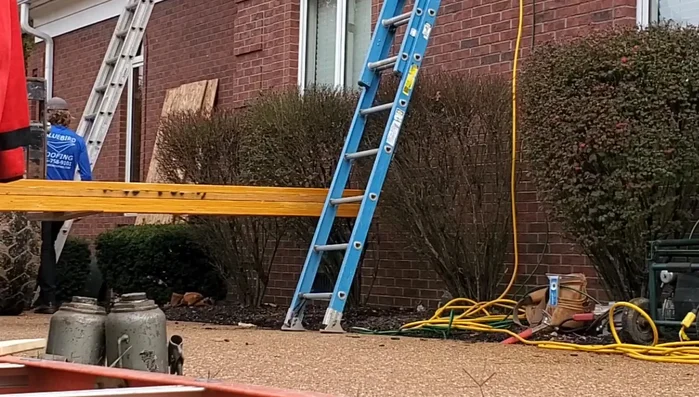

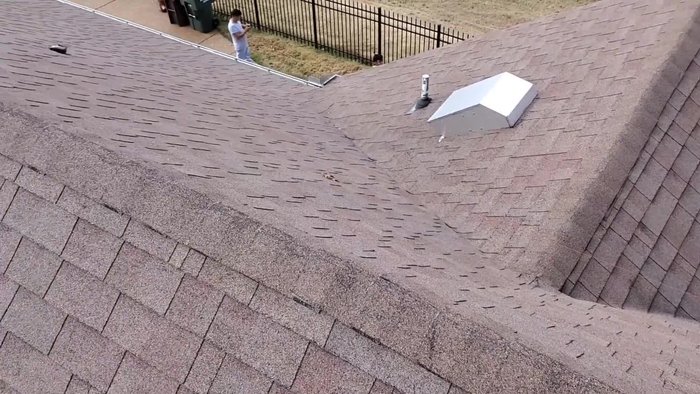

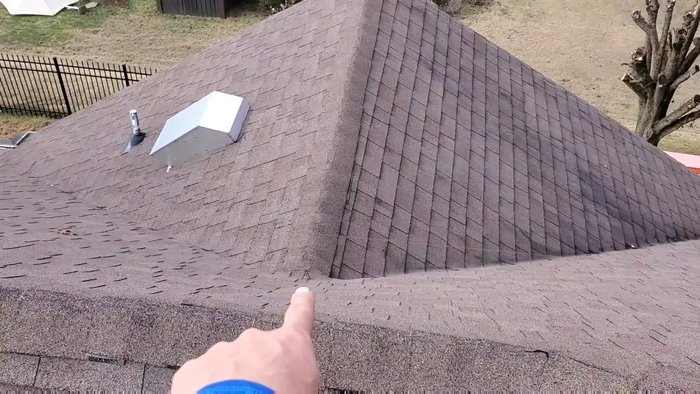

    Measuring the sag.Measuring the sag.Measuring the sag.
    Problem Identification and Assessment

  2. Crack Repair

    • Removing existing, incorrectly applied repair material.
    • Grinding out old cement, then filling with new matching material.

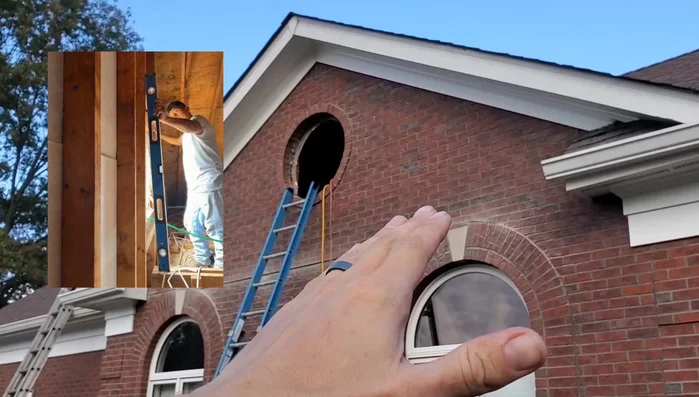

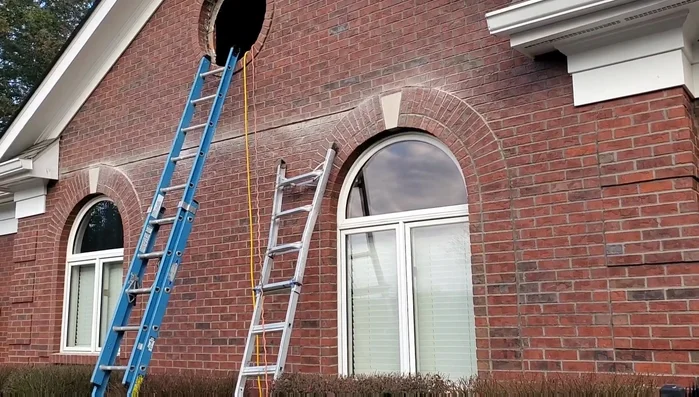

    Repairing the masonry crack: Grinding out old cement, then filling with new matching material.Repairing the masonry crack: Grinding out old cement, then filling with new matching material.
    Crack Repair

  3. Roof Frame Lifting and Support

    • Lifting the roof frame using jacking system.
    • Installing 2x8 support beam to correct the sag.

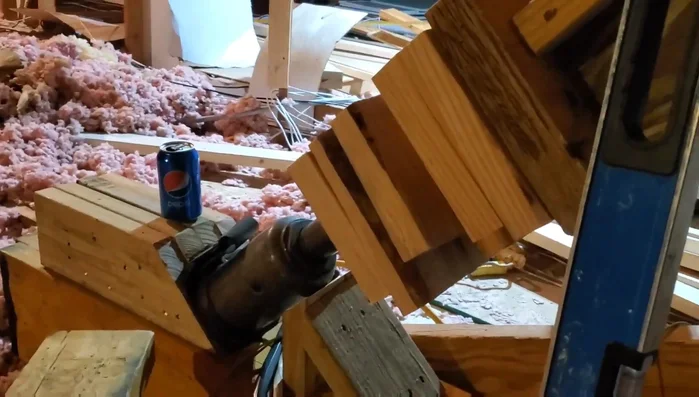

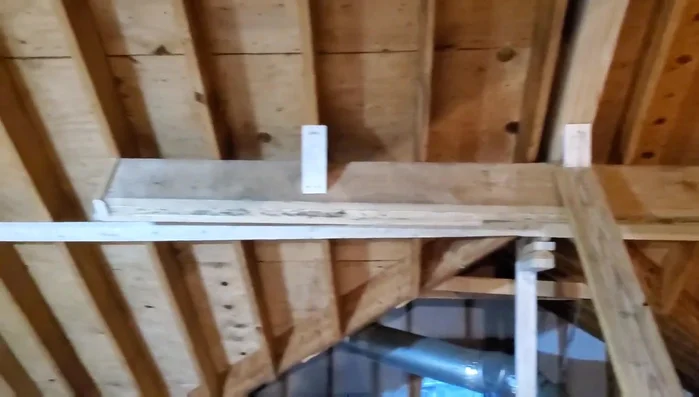

    Installing 2x8 support beam to correct the sag.Installing 2x8 support beam to correct the sag.
    Roof Frame Lifting and Support

  4. Verification and Completion

    • Checking for levelness and straightness.

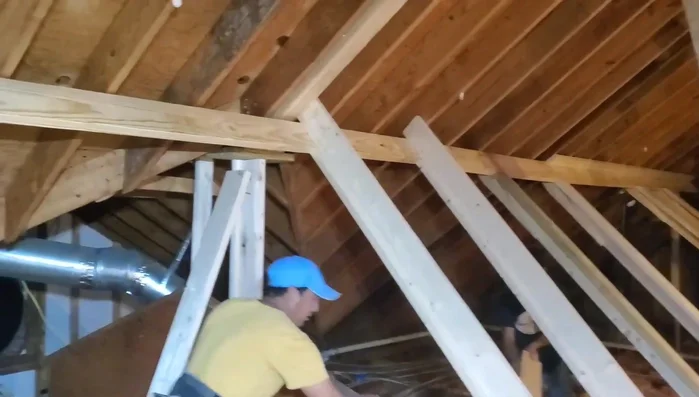

    Verifying the repair: Checking for levelness and straightness.
    Verification and Completion

Read more: DIY Roof, Shingle, Fence, and Flashing Repair with Henry Wet Patch 208

Tips

  • Accurate measurements are crucial for effective repair.
  • Color matching is important for a seamless repair.
  • Proper support is essential to prevent further sagging.

Common Mistakes to Avoid

1. Ignoring Underlying Issues

Reason: Focusing solely on cosmetic repairs (like patching cracks) without addressing the root cause of the sagging roof frame or masonry cracks (e.g., foundation settlement, water damage).
Solution: Thoroughly investigate and address the underlying structural problem before attempting any surface repairs.

2. Using Inappropriate Materials

Reason: Employing patching materials that are incompatible with the existing structure or that lack the necessary strength and durability for long-term repair.
Solution: Choose repair materials that are specifically designed for the type of masonry and structural elements being repaired and are compatible with existing materials.

FAQs

How can I tell if my sagging roof frame is due to structural issues or just minor settling?
Minor settling usually results in small, localized sagging and may only affect a small section of the roof. Significant sagging, affecting a large area or accompanied by cracks in walls or masonry, strongly suggests a major structural problem requiring immediate professional attention. Look for uneven sagging, large cracks, or bowed rafters. If you're unsure, consult a structural engineer.
