Fixing Large Gaps Under Doors: The Aluminum & Vinyl Flange Sweep Method

Updated at: 07/02/2025

Drafty doors are a common household annoyance, leading to uncomfortable temperatures and inflated energy bills. That persistent whistling sound under your door isn't just irritating; it's a clear sign of significant heat loss (or gain, depending on the season) and a potential security vulnerability. Large gaps beneath exterior doors are especially problematic, creating significant air leakage that can dramatically impact your home's energy efficiency and comfort. Traditional weatherstripping often proves insufficient for addressing these sizeable gaps.

This article explores a robust and effective solution: utilizing aluminum or vinyl flange sweeps to seal those troublesome openings. This method offers a durable, long-lasting seal that's surprisingly easy to install, even for DIY enthusiasts. To learn how to effectively implement this solution and banish those drafts for good, let's dive into the step-by-step instructions outlined below.

Preparation and Safety Guidelines

Tools Needed
  • Aluminum and vinyl flange sweep
  • Pencil
  • Measuring tape
  • Hacksaw
  • Utility knife
  • Combo square
  • Drill
  • Titanium drill bits (for metal doors)
  • Self-tapping screws (for metal doors)
Safety Guidelines
  • Always measure your door gap accurately before purchasing any sweeps to ensure a proper fit. Improperly sized sweeps will be ineffective.
  • Use caution when using sharp tools like utility knives or scissors during installation. Always cut away from yourself and wear appropriate safety glasses.
  • Ensure the door sweeps' adhesive is compatible with your door and flooring material to prevent damage or residue.

Step-by-Step Instructions

  1. Measure and Cut Aluminum Flange

    • Mark the jam locations on the door slab with a pencil.

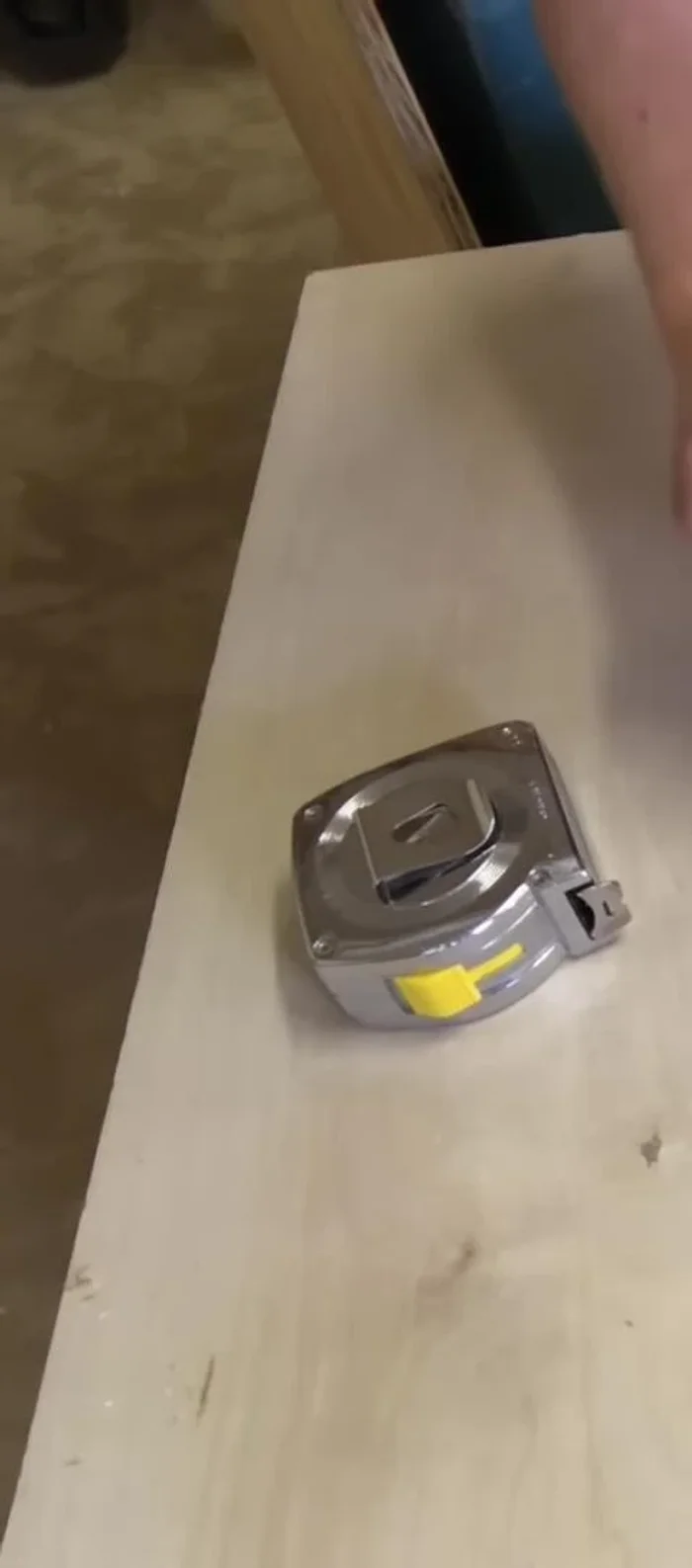

    • Measure the space between the marks carefully and transfer this measurement to the aluminum flange.
    • Make a straight line at the mark with the combo square and carefully cut the aluminum with a hacksaw.
    Make a straight line at the mark with the combo square and carefully cut the aluminum with a hacksaw.Make a straight line at the mark with the combo square and carefully cut the aluminum with a hacksaw.Make a straight line at the mark with the combo square and carefully cut the aluminum with a hacksaw.
    Measure and Cut Aluminum Flange

  2. Cut Vinyl Flange

    • Cut the vinyl flange with a utility knife.
    Cut the vinyl flange with a utility knife.
    Cut Vinyl Flange

  3. Position and Secure Flange

    • With the door closed, push the sweep against the door bottom, press down firmly until the vinyl flexes and the gaps vanish.
    • Mark the screw positions with a pencil, drill in the center of the slot leaving vertical slack.

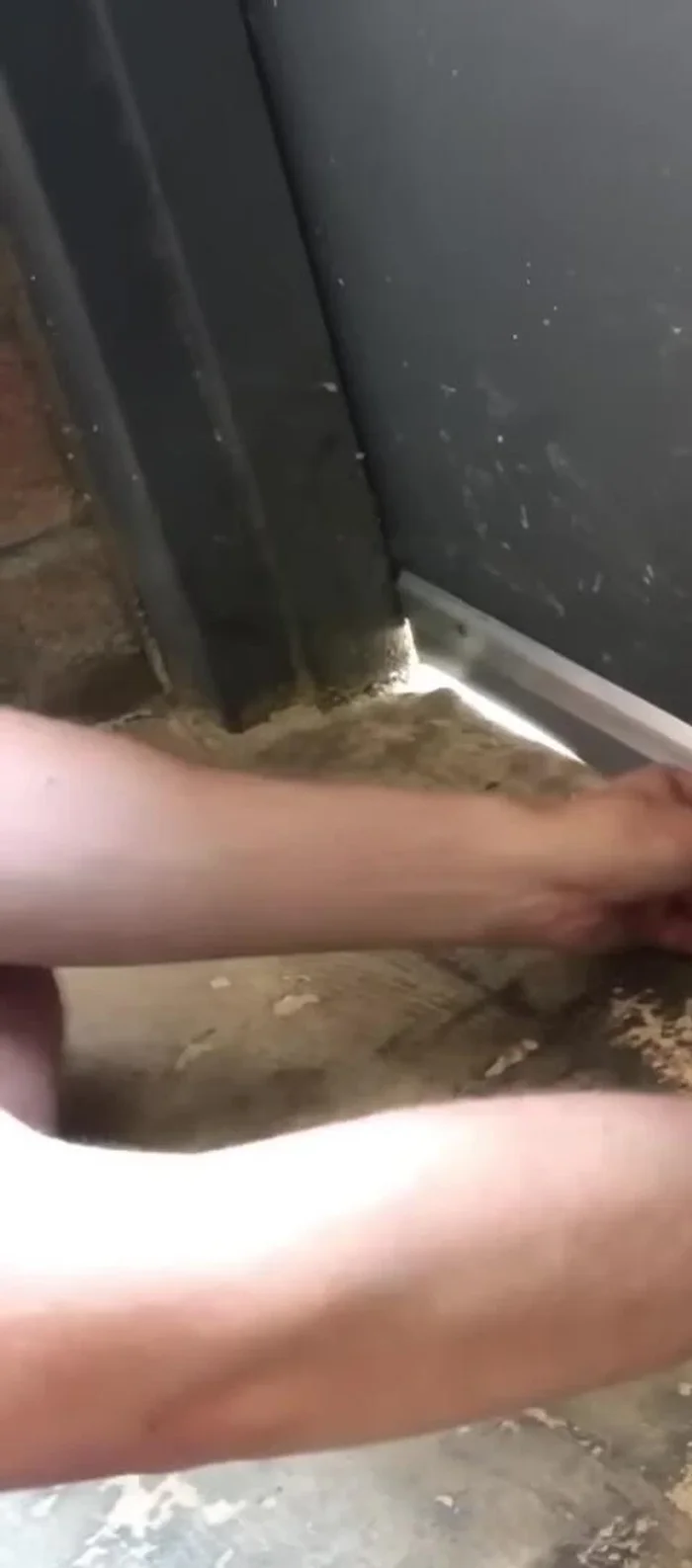

    • Attach the sweep using appropriate screws (self-tapping screws for metal doors).
    Attach the sweep using appropriate screws (self-tapping screws for metal doors).Attach the sweep using appropriate screws (self-tapping screws for metal doors).
    Position and Secure Flange

  4. Address Remaining Gaps (if any)

    • If necessary, attach another flange sweep to the outside to address any remaining gaps.

Read more: 3M Thinsulate Window Film Installation: A Step-by-Step Guide

Tips

  • For metal doors, use titanium drill bits and self-tapping screws.
  • Adjust the sweep later by using the slots in the screws for better fit
  • Aluminum and vinyl flange sweeps are versatile, affordable (around $10), and can be used on various door types and thicknesses.

Common Mistakes to Avoid

1. Incorrect Measurement and Flange Selection

Reason: Using a flange that's too short or too narrow will leave gaps unsealed, while one that's too long might not fit properly or look aesthetically pleasing.
Solution: Carefully measure the gap and choose a flange sweep with the appropriate length and width before purchasing.

2. Poor Adhesion and Improper Installation

Reason: Using insufficient adhesive or failing to clean the door and floor properly will lead to the flange easily detaching or not sealing the gap effectively.
Solution: Thoroughly clean both the door and floor surfaces and apply a strong adhesive according to the manufacturer's instructions.

FAQs

Will a flange sweep work on uneven floors?
While flange sweeps are designed for standard door gaps, minor unevenness can usually be accommodated. For significant unevenness, you may need to shim the door or the sweep itself to create a better seal.
What's the difference between aluminum and vinyl flange sweeps?
Aluminum sweeps are generally more durable and weather-resistant, making them suitable for exterior doors. Vinyl sweeps are more affordable and often come in a wider variety of colors, better suited for interior doors. Consider your needs and budget.
How do I measure for the correct size flange sweep?
Measure the width of your door and the size of the gap underneath. Choose a sweep with a width that covers the door completely and a depth sufficient to cover the gap. You should also account for the sweep's attachment method.
