DIY Dishwasher Repair: Fix Washing & Filling Issues (Step-by-Step Guide)

Updated at: 14/05/2025

Is your dishwasher stubbornly refusing to wash your dishes or fill with water, leaving you with a mountain of dirty plates? A malfunctioning dishwasher can be a major inconvenience, but before you shell out money for a costly repair service or a brand-new appliance, consider the possibility of a simple DIY fix. Many common dishwasher problems can be resolved with a bit of troubleshooting and some basic tools, saving you both time and money. From clogged filters to faulty pumps, understanding the inner workings of your machine can empower you to tackle these issues head-on.

This guide provides a comprehensive, step-by-step approach to diagnosing and resolving the most prevalent washing and filling problems in dishwashers. We'll cover everything from checking the power supply and inspecting the water inlet valve to cleaning the spray arms and clearing potential blockages. Ready to get your dishwasher sparkling clean again? Let's dive into the detailed instructions below.

Preparation and Safety Guidelines

Tools Needed
  • Paperclip
  • Screwdriver
Safety Guidelines
  • Always disconnect the dishwasher from the power supply before attempting any repairs. Failure to do so could result in serious electric shock.
  • Wear appropriate safety gear, including gloves, to protect yourself from sharp edges, broken glass, and cleaning chemicals.
  • If you are unsure about any step of the repair process, consult a qualified appliance repair technician. Improper repairs can cause further damage or create safety hazards.

Step-by-Step Instructions

  1. Safety First: Power Disconnection

    • Disconnect the dishwasher's power supply.
    Disconnect the dishwasher's power supply.
    Safety First: Power Disconnection

  2. Initial Water Fill Test

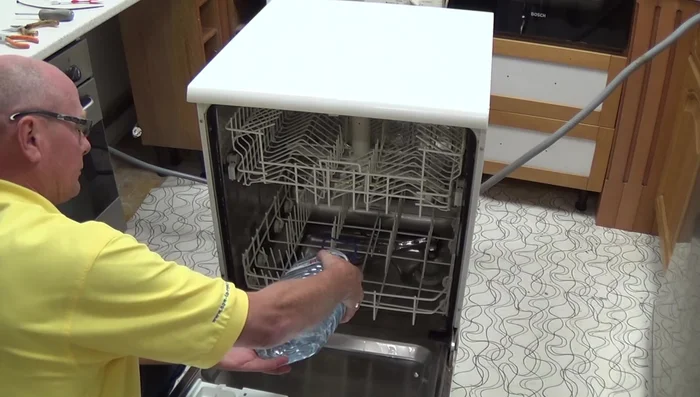

    • Check if the dishwasher fills with water by pouring a gallon into the tub.
    Check if the dishwasher fills with water by pouring a gallon into the tub.
    Initial Water Fill Test

  3. Access Interior Components

    • Remove the bottom rack and spray arm.

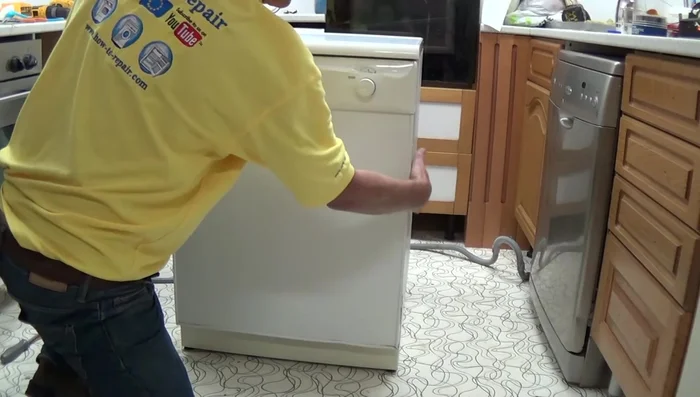

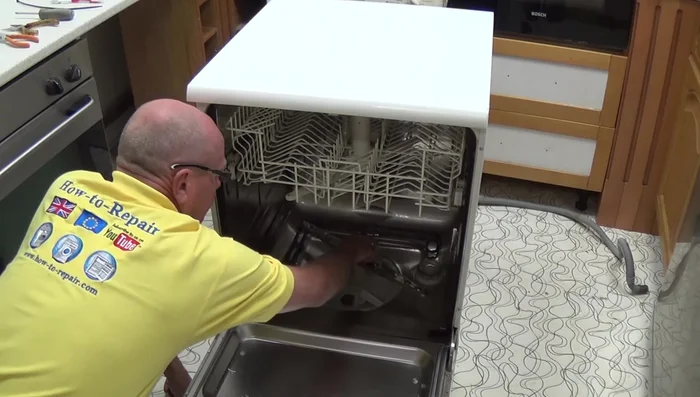

    • Remove the right-hand side panel to access the water system components.
    Remove the right-hand side panel to access the water system components.Remove the right-hand side panel to access the water system components.
    Access Interior Components

  4. Clean Spray Arm and Filter

    • Clean the spray arm jets using a paperclip to remove any debris.

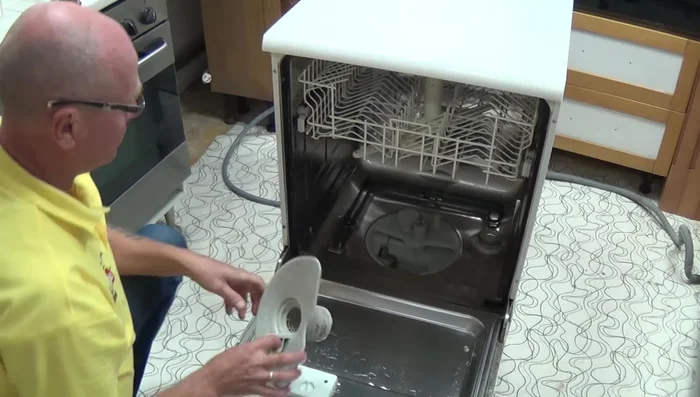

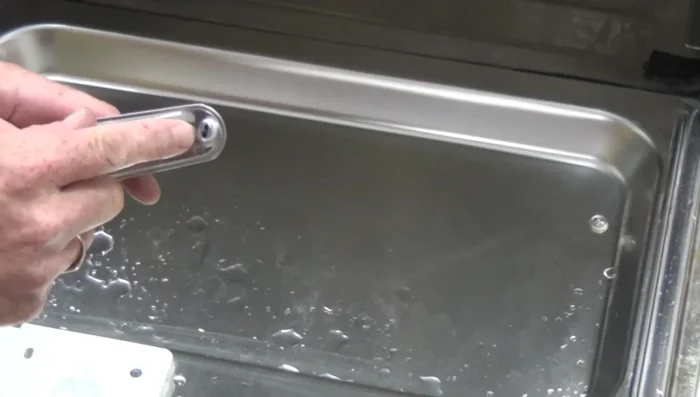

    • Remove and clean the filter.
    Remove and clean the filter.Remove and clean the filter.
    Clean Spray Arm and Filter

  5. Clean Pressure Bowls

    • Remove the bottom pressure bowl; tilt the machine to disconnect the attached pipe.
    • Clean the bottom pressure bowl and check for blockages.

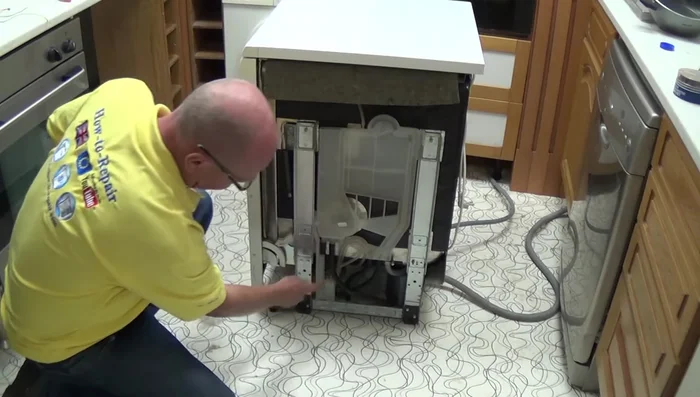

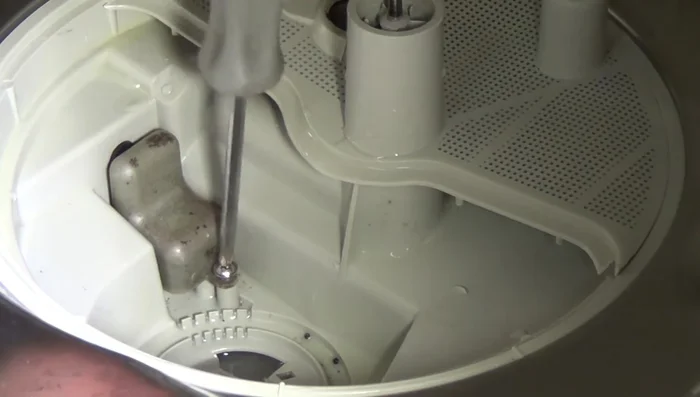

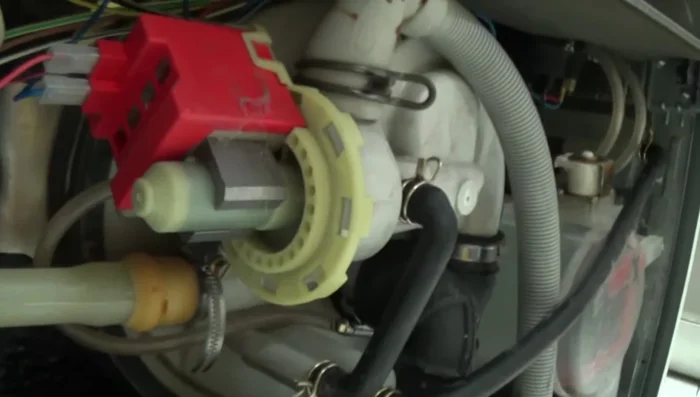

    • Remove and clean the top pressure bowl.
    Remove and clean the top pressure bowl.Remove and clean the top pressure bowl.Remove and clean the top pressure bowl.
    Clean Pressure Bowls

  6. Clean and Inspect Water Inlet System

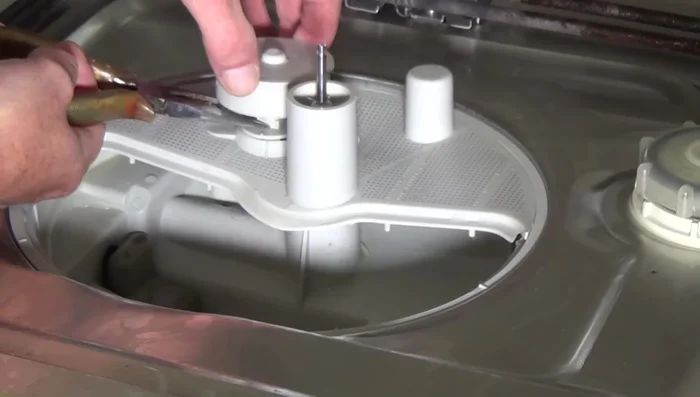

    • Remove and clean the float valve.

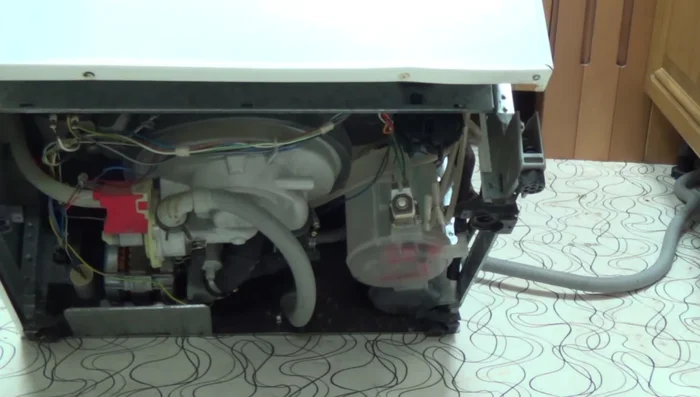

    • Clean the pipes connected to the pressure switch by blowing through them.
    Clean the pipes connected to the pressure switch by blowing through them.Clean the pipes connected to the pressure switch by blowing through them.
    Clean and Inspect Water Inlet System

  7. Reassembly

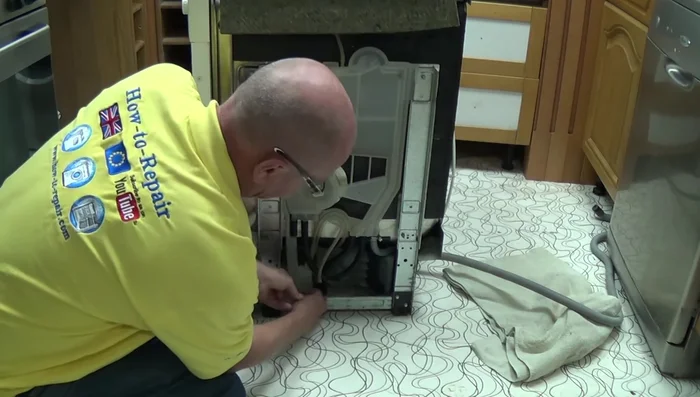

    • Reassemble the dishwasher, connecting all pipes and pressure bowls.
    Reassemble the dishwasher, connecting all pipes and pressure bowls.
    Reassembly

  8. Final Test Run

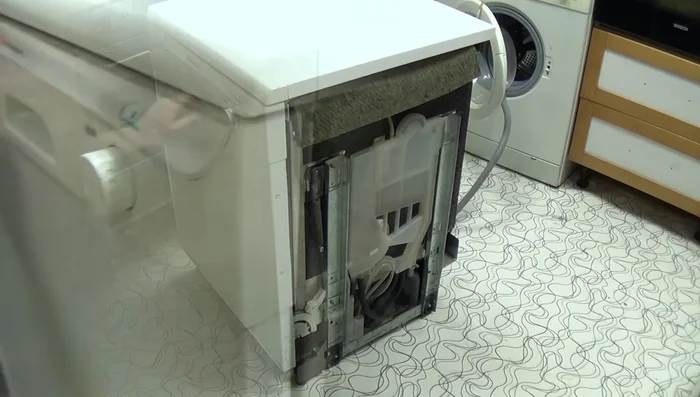

    • Test the dishwasher's wash cycle to ensure proper filling and operation.
    Test the dishwasher's wash cycle to ensure proper filling and operation.
    Final Test Run

Read more: Fix Washing Machine Won't Spin: Quick & Easy Motor Coupler Replacement

Tips

  • Always disconnect the power supply before working on the dishwasher.
  • Check for simple blockages in spray arms, filters, and pressure bowls before replacing parts.
  • Use a paperclip to clear debris from spray arm jets.
  • Be careful of sharp edges inside the dishwasher.
  • Refer to exploded diagrams online for assistance in identifying and reassembling parts.

Common Mistakes to Avoid

1. Incorrectly Identifying the Problem

Reason: Jumping to conclusions without properly diagnosing the issue (e.g., assuming a faulty pump when it's a clogged filter) leads to unnecessary part replacements and wasted time.
Solution: Thoroughly check all possible causes before replacing any parts; consult your dishwasher's manual or online resources for troubleshooting.

2. Ignoring Safety Precautions

Reason: Working with water and electricity without proper safety measures (e.g., disconnecting power, turning off water supply) can lead to electric shock or water damage.
Solution: Always disconnect power and water supply before starting any repair work and ensure the area is dry before reconnecting.

3. Overtightening Components

Reason: Over-tightening screws, clamps, or connectors can strip threads or damage parts, making the problem worse.
Solution: Tighten all components securely, but avoid excessive force; use the appropriate tools and apply even pressure.

FAQs

My dishwasher won't fill with water. What's the first thing I should check?
First, ensure the water supply valve to your dishwasher is turned on. Then, check the water inlet hose for kinks or blockages. Finally, inspect the water inlet valve itself for any visible damage or debris.
The dishes aren't getting clean. What are some common causes?
Clogged spray arms are a frequent culprit. Check for food particles or hard water deposits blocking the spray holes. Also, inspect the filter for debris and clean it thoroughly. A faulty pump is another possibility, but this usually requires more advanced troubleshooting.
My dishwasher is making strange noises. Is this a serious problem?
Unusual noises can indicate several issues, from a malfunctioning motor to a problem with the pump or drain system. If the noise is loud or persistent, it's best to carefully inspect the components and consider professional help if you are unsure of the cause. Attempting to fix a major mechanical issue yourself can cause further damage.
