How to Test a Gas Hob or Oven Thermal Couple: Troubleshooting Flame Failure

Updated at: 11/05/2025

Gas hobs and ovens rely on a crucial safety component called a thermal couple to prevent gas leaks and accidental ignition. This small, but vital, device senses the flame and keeps the gas flowing only when it's actively burning. A faulty thermal couple can lead to frustrating flame failure, leaving you with a cold oven and a potential safety hazard. Understanding how to test your thermal couple is therefore crucial for maintaining a safe and functional appliance. A malfunctioning thermal couple is a relatively common issue, often easily resolved with a simple test and replacement.

This article provides a clear and concise guide to troubleshooting flame failure by testing your gas hob or oven's thermal couple. We'll walk you through a step-by-step process, explaining how to safely disconnect the appliance, test the thermal couple using a multimeter, and interpret the results to determine whether replacement is necessary. Let’s begin!

Preparation and Safety Guidelines

Tools Needed
  • Gas hob or oven
  • Multimeter (DC millivolts)
  • Dissected gas valve (for demonstration purposes)
Safety Guidelines
  • Always disconnect the gas supply to the appliance before starting any testing or repairs. Failure to do so could result in a gas leak and potential explosion or fire.
  • Never attempt to test the thermal couple while the gas hob or oven is energized or connected to the gas supply. This is crucial to avoid injury from burns or gas exposure.
  • If you are unsure about any step of the testing process, or if you are uncomfortable working with gas appliances, contact a qualified gas appliance technician. Improper repair can be dangerous.

Step-by-Step Instructions

  1. Identify the Problem

    • The flame goes out when you release the knob.
    • The thermal couple is responsible for keeping the flame lit after you release the knob. It generates a small amount of DC electricity when heated.

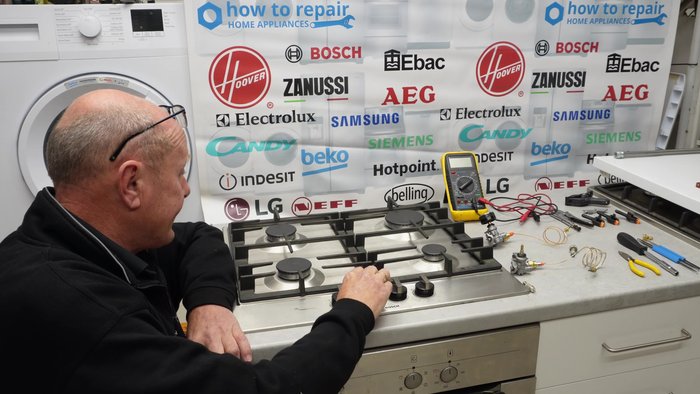

    Identify the component: The thermal couple is responsible for keeping the flame lit after you release the knob. It generates a small amount of DC electricity when heated.
    Identify the Problem

  2. Prepare for Testing

    • Test the thermal couple using a multimeter:
    • Set your multimeter to DC millivolts.

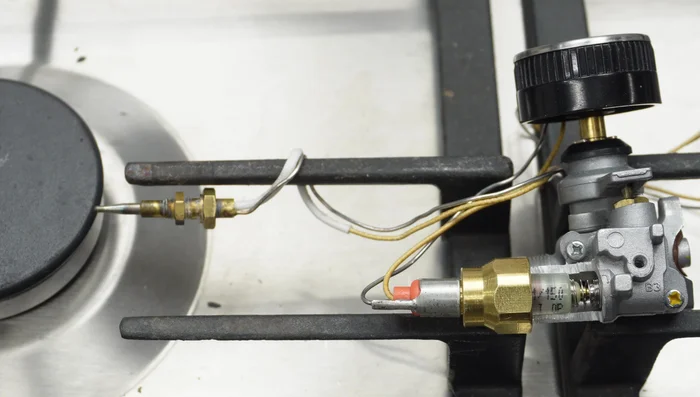

    Set your multimeter to DC millivolts.Set your multimeter to DC millivolts.
    Prepare for Testing

  3. Connect Multimeter and Heat Thermal Couple

    • Connect the multimeter leads to the thermal couple terminals (twin wire or single wire using chassis ground).
    • Heat the thermal couple tip with a flame.

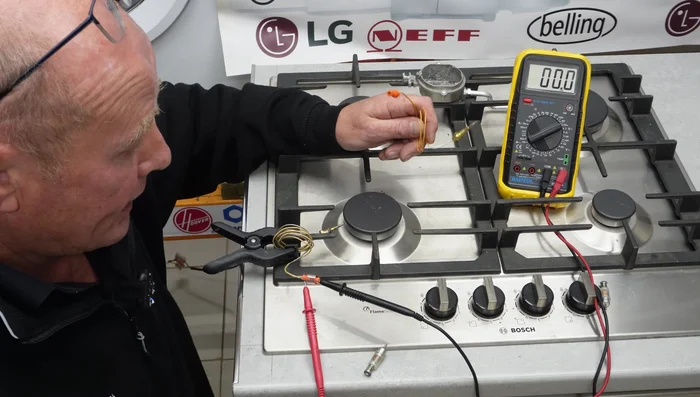

    Heat the thermal couple tip with a flame.
    Connect Multimeter and Heat Thermal Couple

  4. Read and Interpret Results

    • Observe the multimeter reading. A healthy thermal couple should produce 10-50 mV DC (depending on the construction).
    • When you remove the flame, the voltage should quickly drop to zero.
    • Low or no voltage indicates a faulty thermal couple.

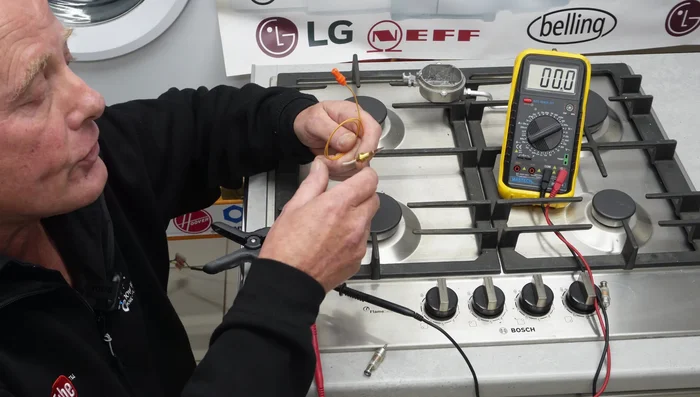

    Interpret the results: Low or no voltage indicates a faulty thermal couple.
    Read and Interpret Results

Read more: Fix Washing Machine Won't Spin: Quick & Easy Motor Coupler Replacement

Tips

  • Always use the correct model number to order replacement parts.
  • Gas appliance repairs should be done by a qualified professional.

Common Mistakes to Avoid

1. Incorrectly Identifying the Thermal Couple

Reason: The thermal couple is a small, easily overlooked component. Mistaking it for another part can lead to unnecessary replacements.
Solution: Carefully examine your appliance's manual or online diagrams to pinpoint the correct thermal couple location before proceeding.

2. Not Properly Cleaning the Thermal Couple

Reason: A dirty or corroded thermal couple won't conduct heat effectively, leading to false failure readings even if it's functioning.
Solution: Gently clean the thermal couple with fine-grit sandpaper or a wire brush to remove any debris or corrosion before testing its continuity.

FAQs

My multimeter isn't showing any reading when I test the thermal couple. What does this mean?
A zero reading usually indicates a faulty thermal couple. The thermal couple is likely broken or damaged and needs replacing. Ensure you've correctly connected the multimeter leads to the terminals of the thermal couple and that your multimeter is set to the correct millivolt (mV) range.
