How to Replace a Whirlpool Duet Water Inlet Valve: A Step-by-Step Guide

Updated at: 14/05/2025

Is your Whirlpool Duet washing machine failing to fill with water? A faulty water inlet valve is a common culprit, often leading to frustrating delays and unfinished laundry. This vital component controls the flow of water into your machine, and replacing it can be a surprisingly straightforward DIY project, saving you the cost of a potentially expensive service call. A malfunctioning valve can manifest in various ways, from a complete lack of water intake to inconsistent filling, making it crucial to identify and address the problem promptly. Ignoring the issue can lead to further damage and more costly repairs down the line.

This guide will walk you through the process of replacing your Whirlpool Duet's water inlet valve with clear, concise instructions and helpful visuals. We'll cover everything from safely disconnecting the power and water supply to properly installing the new valve and testing its functionality. Ready to get started and restore your washing machine to its full working order? Let's dive into the step-by-step process.

Preparation and Safety Guidelines

Tools Needed
  • Screwdrivers (Phillips and Flathead)
  • Pliers
  • Towel
Safety Guidelines
  • Always disconnect the power supply to the washing machine before starting any repairs. Failure to do so could result in electric shock.
  • Turn off the water supply to the washing machine using the shut-off valves located behind the machine. This prevents water leakage during the repair.
  • Have a bucket or towels ready to catch any remaining water in the inlet hoses. Some water may remain even after turning off the supply.

Step-by-Step Instructions

  1. Prepare for Replacement

    • Turn off power and water supply. Unplug the appliance or switch off the circuit breaker. Turn off hot and cold water supplies.

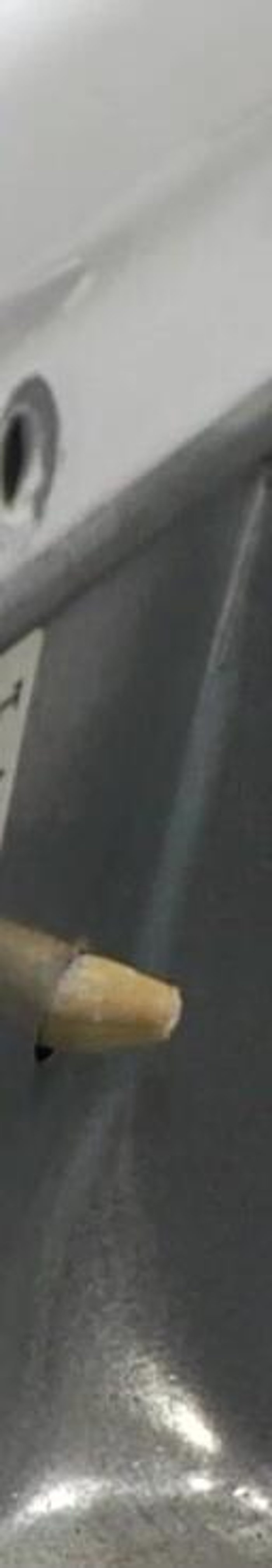

    • Protect the floor. Place a towel down on the floor to prevent water damage.
    Protect the floor. Place a towel down on the floor to prevent water damage.Protect the floor. Place a towel down on the floor to prevent water damage.
    Prepare for Replacement

  2. Disconnect Water and Access Valve

    • Disconnect fill hoses. Remove the hot and cold water fill hoses from the valve using channel locks. Label hoses if necessary.

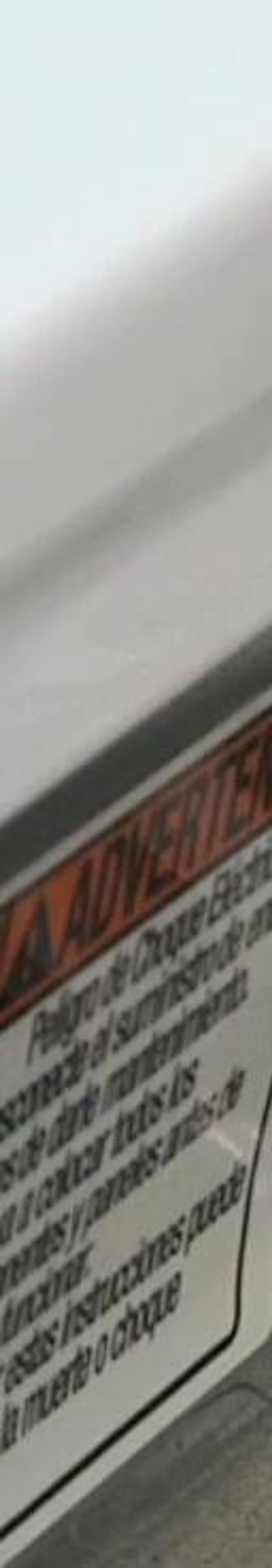

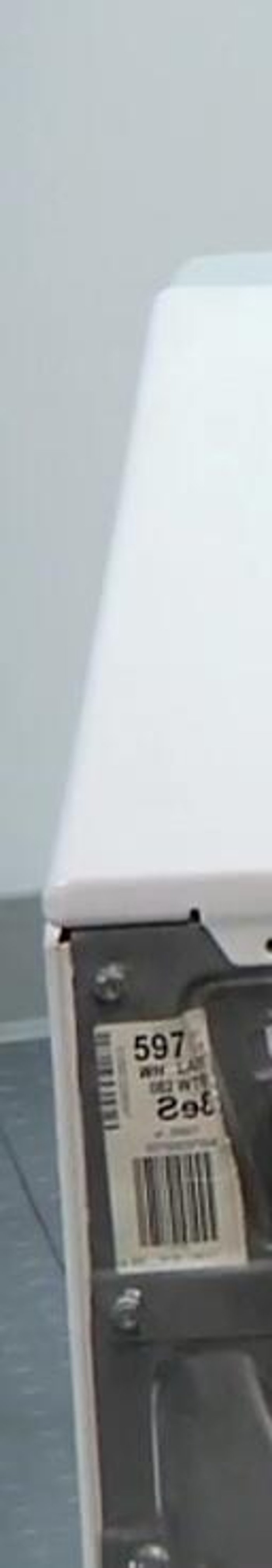

    • Remove the top panel. Remove three screws across the back of the machine and lift off the top panel.
    Remove the top panel. Remove three screws across the back of the machine and lift off the top panel.Remove the top panel. Remove three screws across the back of the machine and lift off the top panel.
    Disconnect Water and Access Valve

  3. Disconnect Electrical Connections

    • Disconnect wires. Lift the small tabs on the valve's wiring harness and disconnect the wires.

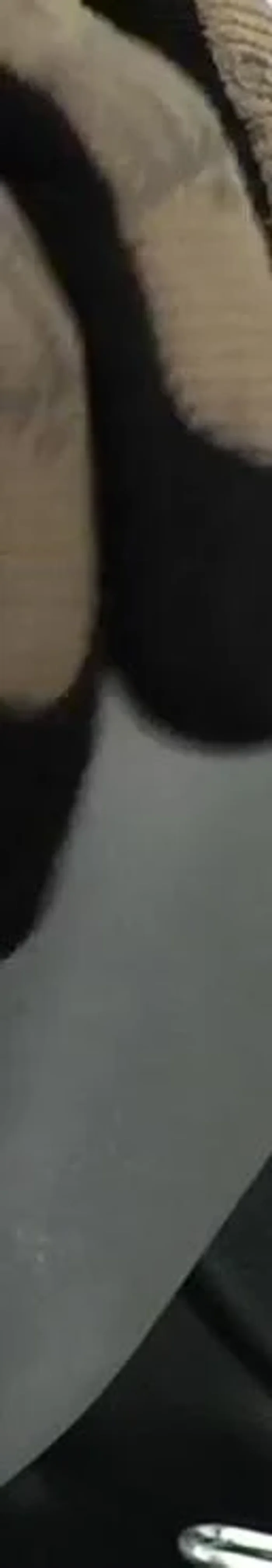

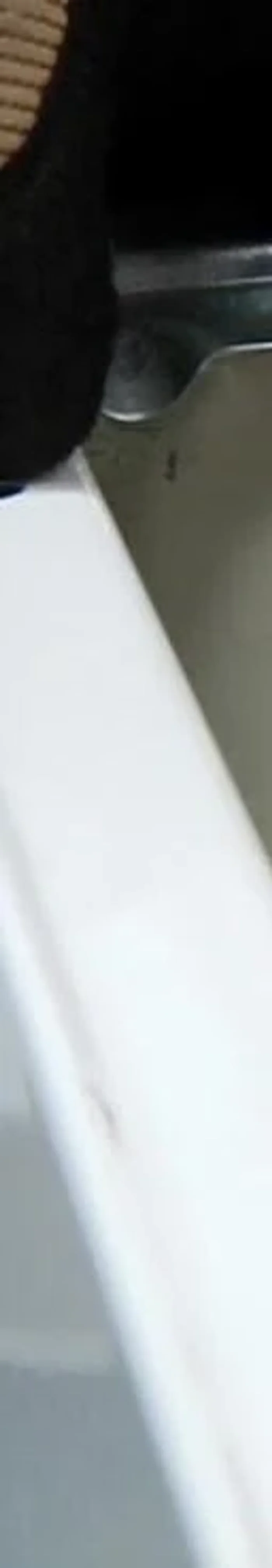

    • Remove the mounting screw. Unscrew the mounting screw located on the back panel.
    Remove the mounting screw. Unscrew the mounting screw located on the back panel.Remove the mounting screw. Unscrew the mounting screw located on the back panel.
    Disconnect Electrical Connections

  4. Remove Old Valve

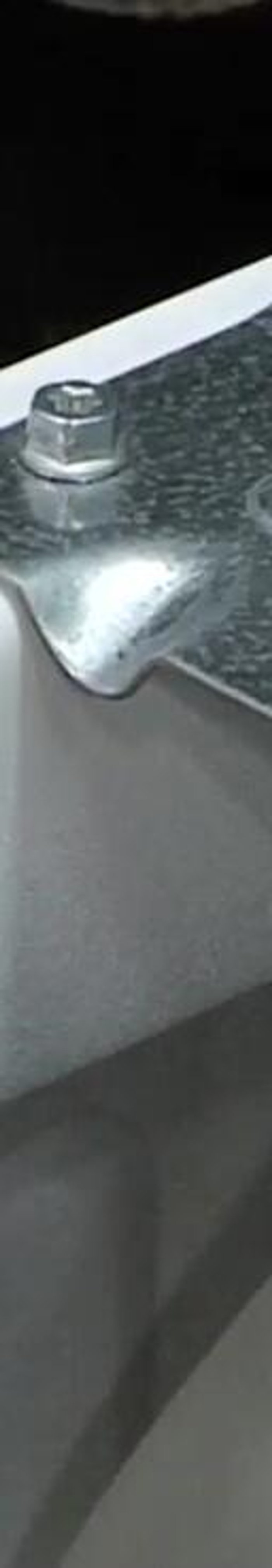

    • Remove the old valve. Pull out the old valve. Use pliers to remove the hose clamp and detach the hoses.
    Remove the old valve. Pull out the old valve. Use pliers to remove the hose clamp and detach the hoses.
    Remove Old Valve

  5. Install New Valve

    • Install the new valve. Connect the water line to the new valve and secure with the clamp using pliers.

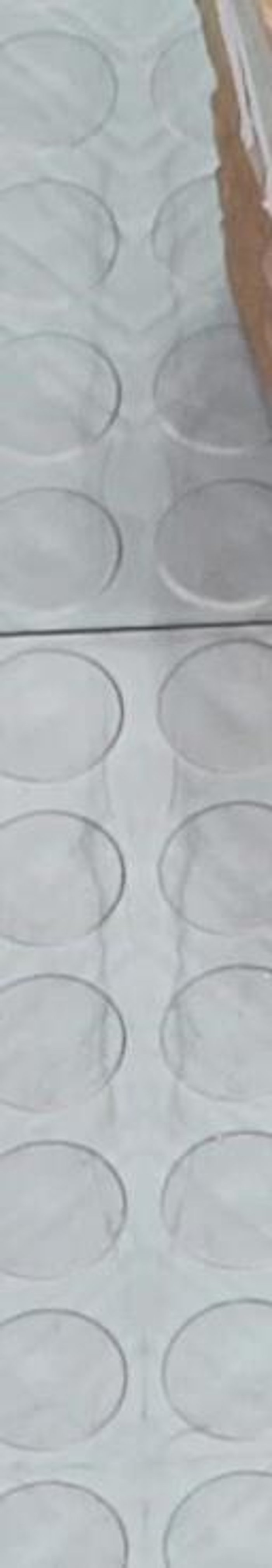

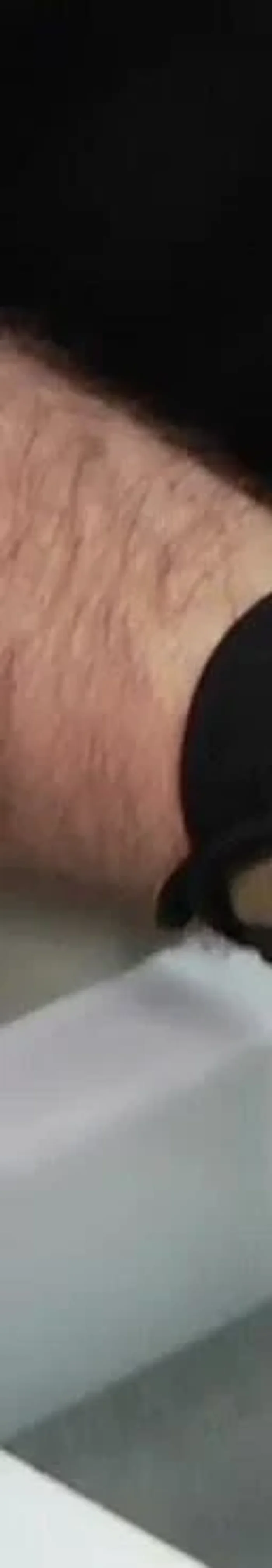

    • Mount the new valve. Place the new valve into the washer and secure it to the back wall with the mounting screw.
    Mount the new valve. Place the new valve into the washer and secure it to the back wall with the mounting screw.Mount the new valve. Place the new valve into the washer and secure it to the back wall with the mounting screw.
    Install New Valve

  6. Reconnect Electrical and Water

    • Reconnect the wires. Push the wires into place on the new valve, ensuring they are securely locked in.

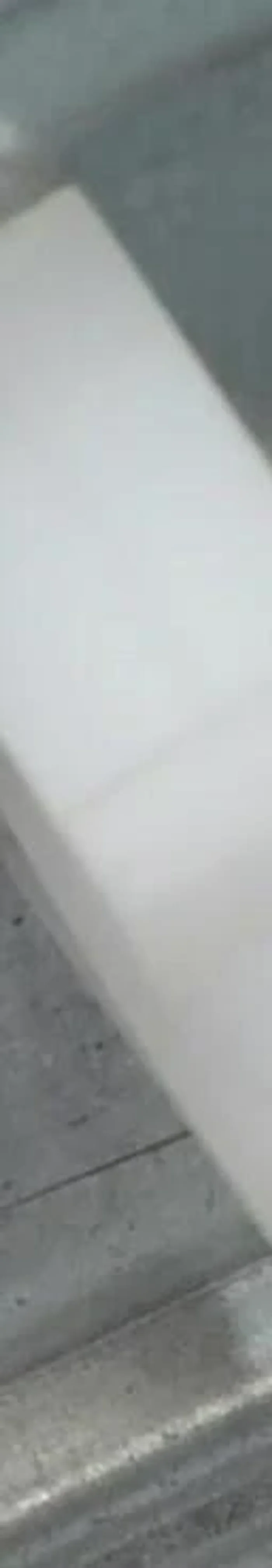

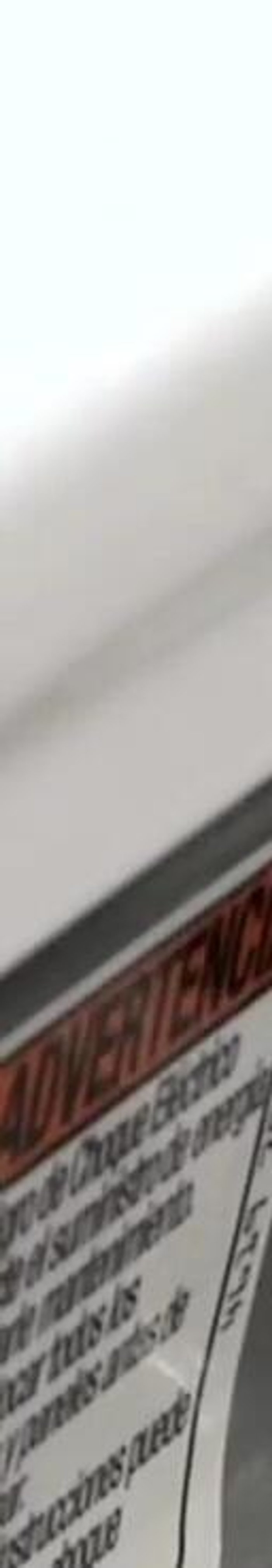

    • Reconnect water hoses. Thread the water hoses onto the new valve and tighten them securely using the channel locks.
    Reconnect water hoses. Thread the water hoses onto the new valve and tighten them securely using the channel locks.Reconnect water hoses. Thread the water hoses onto the new valve and tighten them securely using the channel locks.
    Reconnect Electrical and Water

  7. Reassemble and Restore

    • Reinstall the top panel. Place the top panel back on the washer, aligning the holes with the pins, and secure it with the screws.

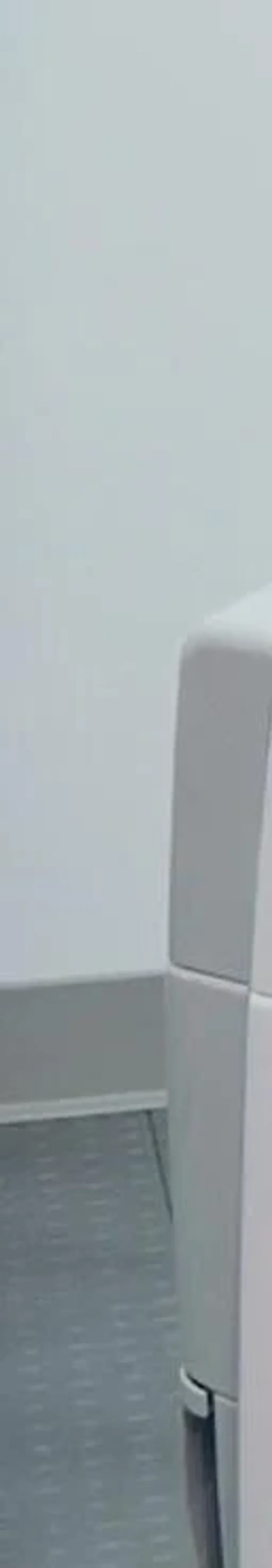

    • Restore power and water. Plug the appliance back in and restore the water supply.
    Restore power and water. Plug the appliance back in and restore the water supply.Restore power and water. Plug the appliance back in and restore the water supply.
    Reassemble and Restore

Read more: Fix Washing Machine Won't Spin: Quick & Easy Motor Coupler Replacement

Tips

  • Always disconnect power and water before working on any appliance to prevent electrocution and water damage.
  • Label your hoses to avoid connecting them incorrectly. If your shut off valves aren't color-coded, label them clearly.
  • If the hose is difficult to remove, use a small flathead screwdriver to help loosen it.
  • Parts may vary slightly, but the installation process remains largely the same.
  • Remember to use the correct torque for the screws (number 20 in this case).

Common Mistakes to Avoid

1. Incorrect Valve Identification

Reason: Purchasing the wrong water inlet valve for your specific Whirlpool Duet model. Different models use different valves.
Solution: Verify the model number of your washing machine and cross-reference it with the part number on the new valve before purchase.

2. Improper Water Supply Line Connection

Reason: Failing to properly secure the water supply lines to the new valve, leading to leaks.
Solution: Tighten the compression fittings on the water supply lines securely by hand, then use pliers to give them an additional ΒΌ turn to ensure a tight seal.

3. Ignoring Electrical Safety Precautions

Reason: Not disconnecting the washing machine from the power source before beginning repairs, leading to potential electrical shock.
Solution: Always unplug the washing machine from the power outlet and turn off the water supply before starting any repairs.

FAQs

How do I know if my Whirlpool Duet's water inlet valve is bad?
Several symptoms indicate a faulty valve. The most common are: the washer not filling with water at all, inconsistent filling (filling slowly or stopping and starting), or strange noises coming from the valve area during the fill cycle. If you experience any of these, the valve is likely the problem.
Where can I buy a replacement water inlet valve for my Whirlpool Duet?
Replacement valves can be purchased from various sources. Your local appliance parts store is a good option, or you can often find them online through retailers like Amazon or directly from Whirlpool's website. When ordering, make sure you have the correct model number for your specific Whirlpool Duet washing machine to ensure compatibility.
