Upgrading Your Fuse Panel to a Breaker Box: A Step-by-Step Guide

Updated at: 18/05/2025

Outdated fuse panels pose significant risks in modern homes, often struggling to handle the power demands of today's appliances and electronics. Their inherent fragility, requiring fuse replacement after every overload, is not only inconvenient but also a potential fire hazard. Upgrading to a modern breaker box offers superior protection and increased capacity, preventing dangerous overloads and providing peace of mind. A breaker box allows for individual circuit tripping, meaning only the affected circuit shuts down instead of the entire system. This simple upgrade can significantly enhance your home's safety and electrical efficiency.

This significant improvement in home safety doesn't need to be daunting; this step-by-step guide will walk you through the process of upgrading your fuse panel to a breaker box safely and effectively, from assessing your needs to completing the final connections. Let's get started!

Preparation and Safety Guidelines

Tools Needed
  • Screwdrivers
  • Wire Cutters/Strippers
  • Voltage Tester
  • New Breaker Box
  • Slimline Breakers
Safety Guidelines
  • **Electricity is dangerous.** Turn off the main power supply to your home's electrical system at the meter or main disconnect before starting any work. Failure to do so can result in serious injury or death.
  • **This is a complex task.** Unless you have significant experience with electrical work, hire a qualified electrician. Incorrect installation can cause fires, electrocution, and damage to your home and appliances.
  • **Permitting and inspections may be required.** Check with your local building department before beginning the upgrade to ensure compliance with local codes and regulations. Unpermitted work can lead to fines or even necessitate removal of the installation.

Step-by-Step Instructions

  1. Power Disconnection and Fuse Panel Removal

    • Turn off the power at the meter.
    • Disconnect the main wires (hot, neutral, ground) from the old fuse panel.
    • Remove the old fuse panel.

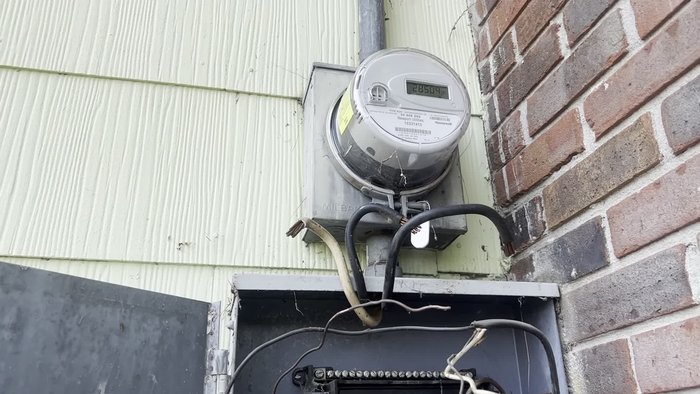

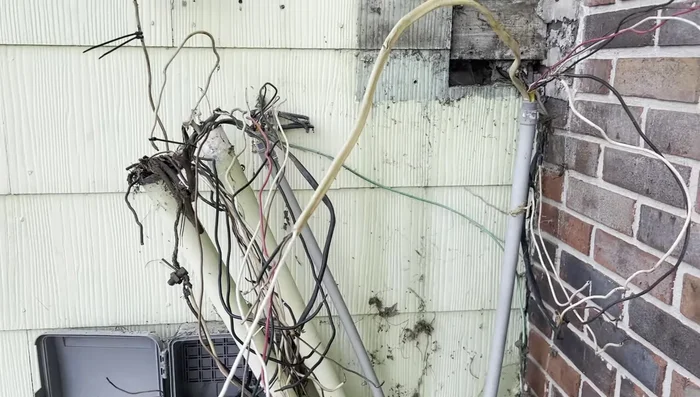

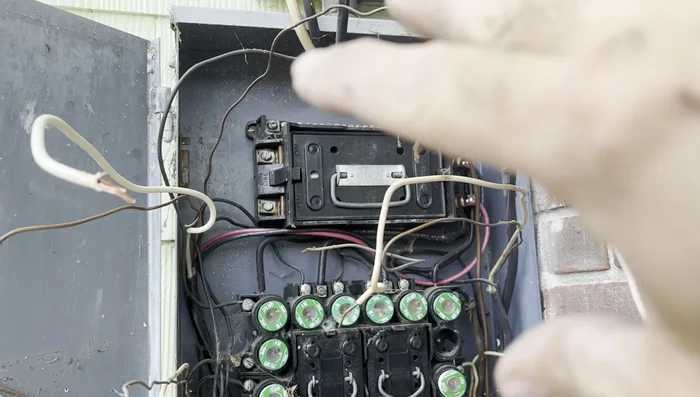

    Remove the old fuse panel.Remove the old fuse panel.Remove the old fuse panel.
    Power Disconnection and Fuse Panel Removal

  2. Breaker Box Installation

    • Mount the new breaker box.

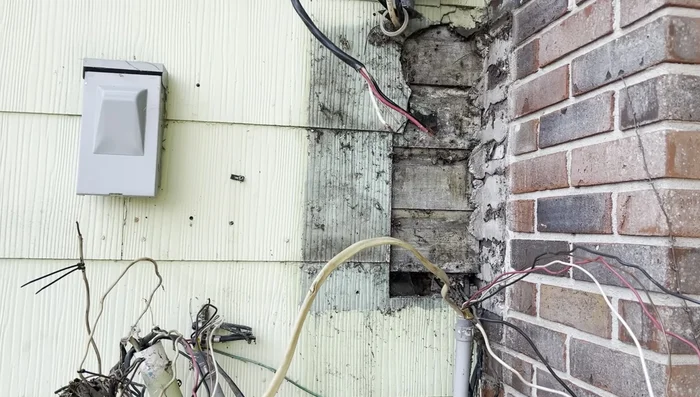

    Mount the new breaker box.
    Breaker Box Installation

  3. Wiring: Ground and Neutral

    • Connect the ground wires to the ground bar.

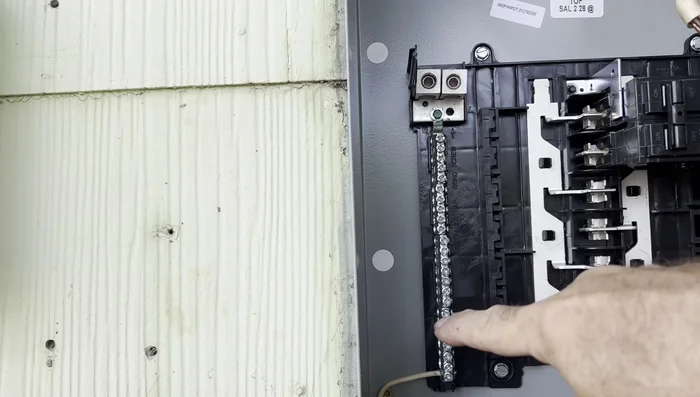

    • Connect the neutral wires to the neutral bar.

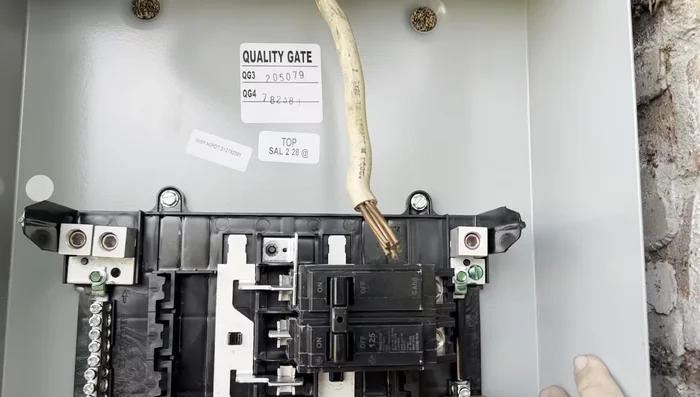

    Connect the neutral wires to the neutral bar.Connect the neutral wires to the neutral bar.
    Wiring: Ground and Neutral

  4. Wiring: Hot Wires and Main Connection

    • Connect the hot wires to the appropriate circuit breakers.
    • Connect the main wires from the meter to the main breaker.

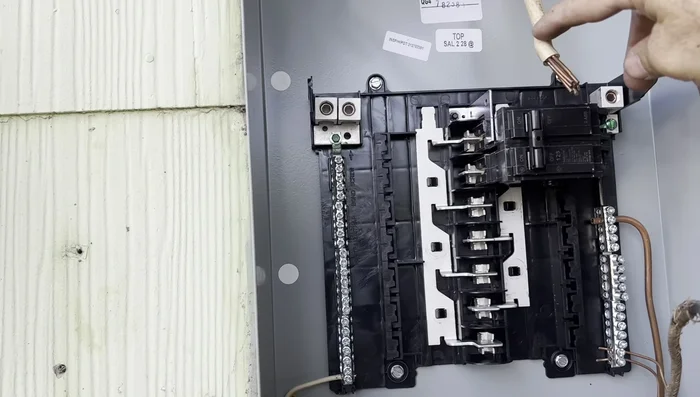

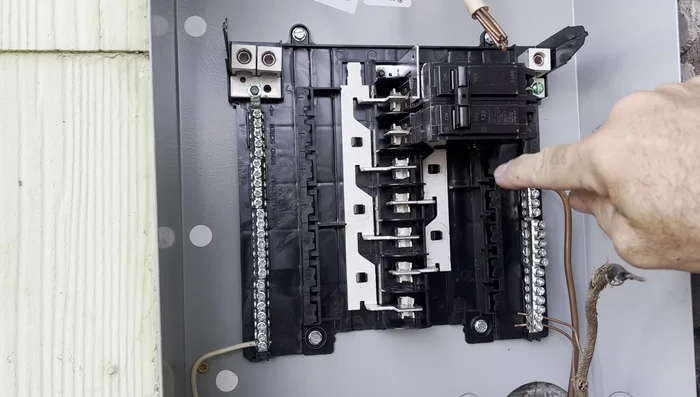

    Connect the main wires from the meter to the main breaker.Connect the main wires from the meter to the main breaker.
    Wiring: Hot Wires and Main Connection

  5. Final Wiring and Testing

    • Install the remaining breakers and connect house wiring.
    • Turn the power back on, testing each breaker individually.

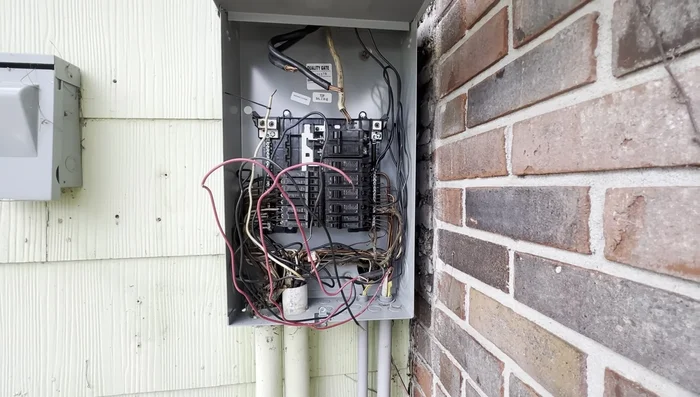

    Turn the power back on, testing each breaker individually.Turn the power back on, testing each breaker individually.
    Final Wiring and Testing

Read more: Installing an Outdoor GFCI Receptacle: A Step-by-Step Guide

Tips

  • Clearly mark all wires before disconnecting them.
  • Ensure grounds and neutrals are connected to their separate bus bars in the new breaker box.
  • Double-check all connections before turning the power back on.

Common Mistakes to Avoid

1. Improper Wire Sizing

Reason: Using wires that are too thin for the amperage of the new breaker box can lead to overheating and potential fire hazards.
Solution: Always use wires with an ampacity rating equal to or greater than the breaker's rating and ensure proper wire gauge for the distance run.

2. Incorrect Breaker Installation

Reason: Installing breakers incorrectly, such as using the wrong type of breaker or not securing them properly, can lead to malfunction and safety risks.
Solution: Carefully follow the manufacturer's instructions for your specific breaker box and breaker types, ensuring each breaker is correctly seated and aligned.

FAQs

Do I need a permit to upgrade my fuse panel?
Yes, in almost all jurisdictions, electrical work requires permits and inspections to ensure compliance with safety codes. Failure to obtain a permit could result in fines or even invalidate your homeowner's insurance.
Can I do this myself, or should I hire an electrician?
While technically possible for some DIY enthusiasts with electrical experience, upgrading a fuse panel is complex and potentially dangerous. It's highly recommended to hire a qualified electrician to ensure safety and proper installation. Mistakes can lead to fire hazards or electrical shock.
How much will upgrading my fuse panel cost?
The cost varies significantly depending on factors like the size of the new breaker box, the complexity of the installation (e.g., needing to run new wiring), your location, and the electrician's rates. Expect to pay several hundred to several thousand dollars.
