Safely Connecting a Portable Generator to Your Home's Electrical Panel

Updated at: 06/02/2025

Power outages can be disruptive, but a portable generator offers a lifeline, restoring essential power to your home. However, improperly connecting a generator to your home's electrical panel can be incredibly dangerous, leading to serious injury or even death from electrocution or carbon monoxide poisoning. Connecting a generator directly to your home's electrical system requires a thorough understanding of electrical safety and proper procedures, and it's crucial to prioritize safety above all else. This is not a DIY project for the faint of heart; if you are unsure about any aspect of this process, you should always consult a qualified electrician.

Before you even think about turning a wrench, understanding the risks and following the correct procedures is paramount. This article will provide a step-by-step guide to safely connect a portable generator to your home's electrical panel, ensuring you can power your home safely and effectively during an outage. Let's get started.

Preparation and Safety Guidelines

Tools Needed
  • Portable Generator
  • Number 10 gauge wire
  • Circuit Breaker Interlock Device
  • Main Breaker Shut Off
Safety Guidelines
  • Never connect a generator directly to your home's electrical panel without a qualified electrician installing a properly sized and code-compliant interlock system. Improper connections can lead to electrocution, fire, or damage to appliances.
  • Always turn off the main breaker before connecting or disconnecting the generator. This prevents backfeeding power into the grid and endangering utility workers.
  • Ensure adequate ventilation around the generator to prevent carbon monoxide poisoning. Never operate the generator indoors or in enclosed spaces.

Step-by-Step Instructions

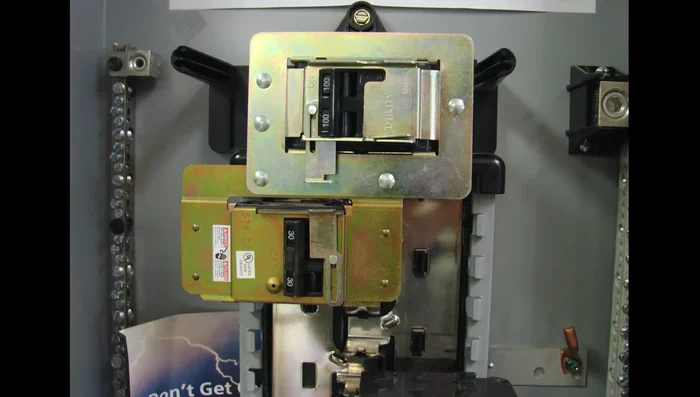

  1. Planning and Preparation

    • Identify and acquire a suitable interlock device for your specific electrical panel. Gather information (brand name, model number) from your panel to cross-reference with available interlock devices at a supply house.
    Identify and acquire a suitable interlock device for your specific electrical panel. Gather information (brand name, model number) from your panel to cross-reference with available interlock devices at a supply house.
    Planning and Preparation

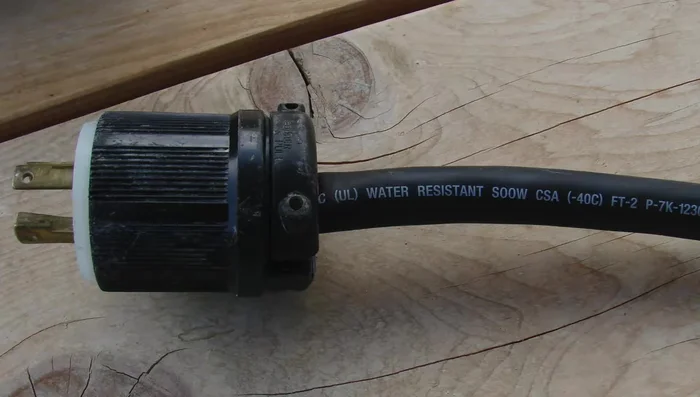

  2. Generator Cord Preparation

    • Size your generator cord appropriately. For a 30-amp generator, use a number 10 gauge wire. This should be a permanently connected cord, avoiding the hassle of searching for a cord during a power outage.
    Size your generator cord appropriately. For a 30-amp generator, use a number 10 gauge wire. This should be a permanently connected cord, avoiding the hassle of searching for a cord during a power outage.
    Generator Cord Preparation

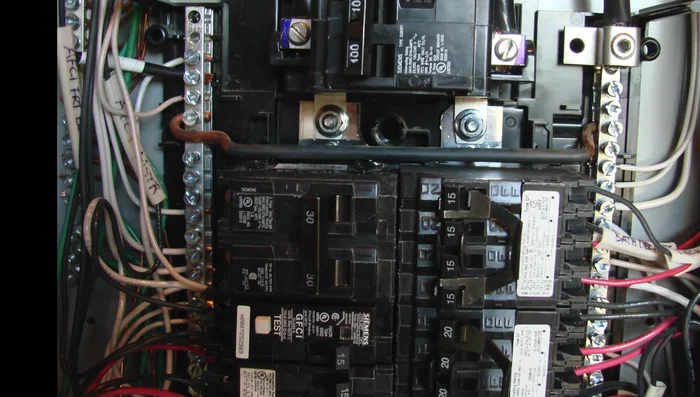

  3. Install Generator Breaker and Wiring

    • Connect the ground and neutral wires from the generator cord to the panel.
    • Install a generator circuit breaker with the same amperage rating as your generator (in this case, 30 amps). Connect the generator's hot wires (black and red, supplying 240 volts) to this breaker.
    Install a generator circuit breaker with the same amperage rating as your generator (in this case, 30 amps). Connect the generator's hot wires (black and red, supplying 240 volts) to this breaker.Install a generator circuit breaker with the same amperage rating as your generator (in this case, 30 amps). Connect the generator's hot wires (black and red, supplying 240 volts) to this breaker.
    Install Generator Breaker and Wiring

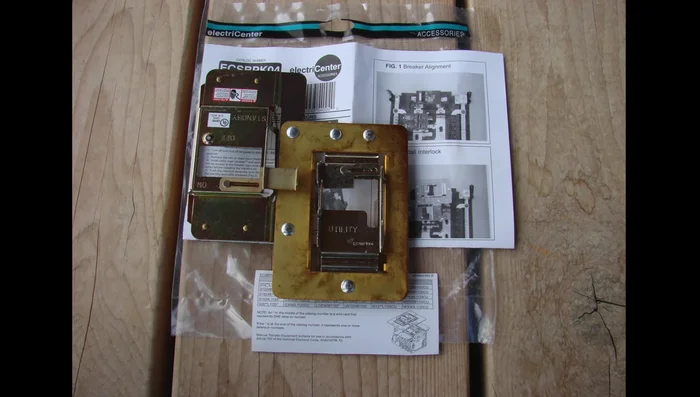

  4. Install Interlock Device

    • Install the interlock device. This device prevents both the main breaker and the generator supply from being on simultaneously, avoiding hazardous backfeeding.
    • After connecting the generator circuit breaker, install the interlock device onto the circuit breakers. Ensure the panel cover is off during this process.
    After connecting the generator circuit breaker, install the interlock device onto the circuit breakers. Ensure the panel cover is off during this process.After connecting the generator circuit breaker, install the interlock device onto the circuit breakers. Ensure the panel cover is off during this process.
    Install Interlock Device

  5. Testing and Labeling

    • Test the system by switching the breakers on and off. Carefully label all breakers, including the main breaker and the generator circuit breaker.
    Test the system by switching the breakers on and off. Carefully label all breakers, including the main breaker and the generator circuit breaker.
    Testing and Labeling

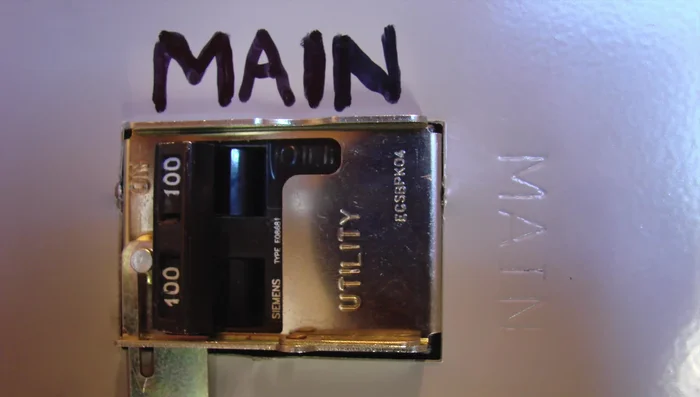

  6. Safety and Load Management

    • Mark non-essential circuits to be turned off during generator use, or stagger heavy loads to avoid overloading the generator and tripping the circuit breaker.
    Mark non-essential circuits to be turned off during generator use, or stagger heavy loads to avoid overloading the generator and tripping the circuit breaker.
    Safety and Load Management

Read more: Installing an Outdoor GFCI Receptacle: A Step-by-Step Guide

Tips

  • This entire project should be done by a qualified electrician.
  • Consider using twin or quad breakers to save space in your panel if needed.
  • Select an interlock device specifically designed and UL approved for your panel.

Common Mistakes to Avoid

1. Improperly Sizing the Generator

Reason: Using a generator that's too small to handle your home's power needs can lead to overloading and damage to the generator or your appliances. Using one that's too large can also create safety hazards.
Solution: Calculate your home's power requirements and select a generator with sufficient wattage and amperage capacity.

2. Failing to Use a Transfer Switch

Reason: Connecting a generator directly to your home's electrical panel without a transfer switch creates a dangerous backfeed situation, which can electrocute utility workers and damage your appliances.
Solution: Always use a properly installed and rated transfer switch to safely isolate your home's wiring from the power grid.
