How to Replace a Difficult-to-Access Cable: A Step-by-Step Guide

Updated at: 08/02/2025

Have you ever stared in frustration at a vital cable, snaked impossibly through your walls or behind bulky appliances, knowing that a simple replacement would solve your problem, but dreading the complex task ahead? Replacing a difficult-to-access cable can feel daunting, a seemingly insurmountable hurdle of tangled wires and tight spaces. However, with the right approach and a little patience, even the most inaccessible cable can be swapped out successfully. Many factors influence the process, from the type of cable to the location and surrounding environment.

This guide provides a clear, step-by-step approach to conquering this common household challenge. We'll walk you through careful planning, safety precautions, and effective techniques to make the process manageable and, dare we say, even enjoyable. Let's dive into the detailed instructions that will empower you to tackle that frustrating cable and restore functionality to your devices.

Preparation and Safety Guidelines

Tools Needed
  • Voltage tester
  • Fish tape
  • Wire
  • NM cable (14 gauge, 2 conductor with ground)
  • Wire strippers
  • Connectors
Safety Guidelines
  • Always disconnect the power source before working with any electrical cables. Failure to do so could result in serious injury or death.
  • If you are uncomfortable working with electricity or are unsure about any step, consult a qualified electrician. Improper handling can lead to damage or injury.
  • Take pictures or make detailed notes of the cable's original routing before disconnecting it. This will greatly assist in re-installation.

Step-by-Step Instructions

  1. Power Isolation and Verification

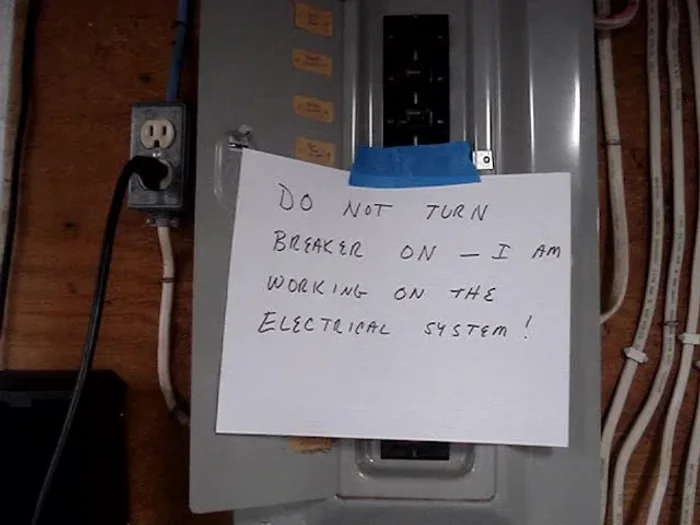

    • Turn off the breaker and verify power is off using a voltage tester.
    Turn off the breaker and verify power is off using a voltage tester.
    Power Isolation and Verification

  2. Cable Removal

    • Remove the old cable from the outlet box.

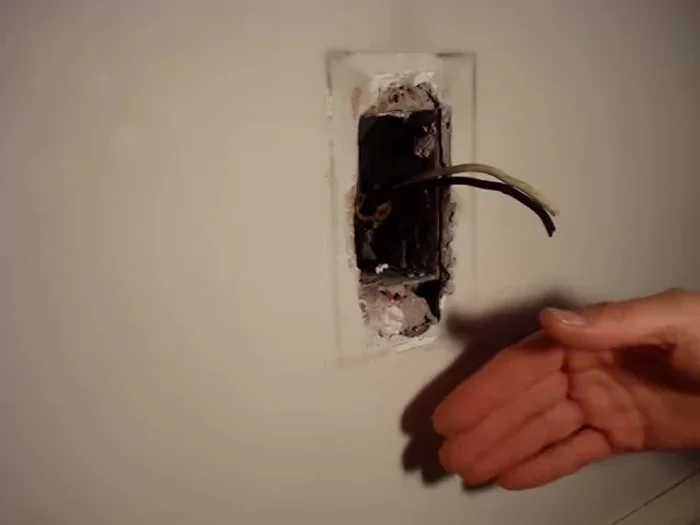

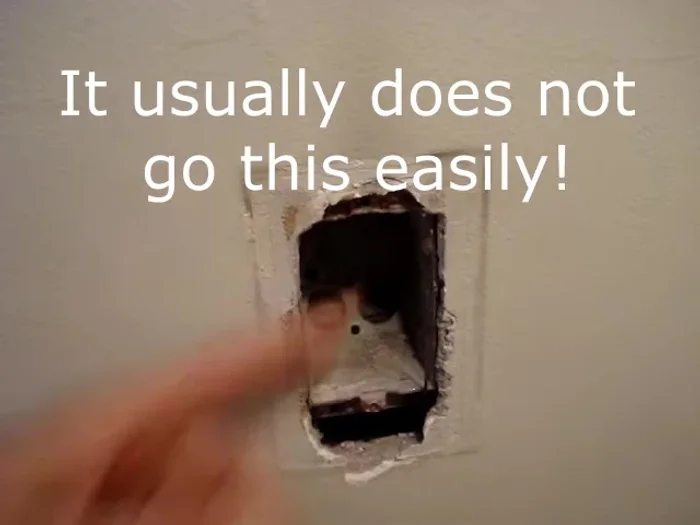

    • Use a fish tape to navigate the cable path. If the fish tape can't reach, attach a wire to it to create a hook for snagging the existing cable.
    Use a fish tape to navigate the cable path. If the fish tape can't reach, attach a wire to it to create a hook for snagging the existing cable.Use a fish tape to navigate the cable path. If the fish tape can't reach, attach a wire to it to create a hook for snagging the existing cable.
    Cable Removal

  3. Prepare New Cable

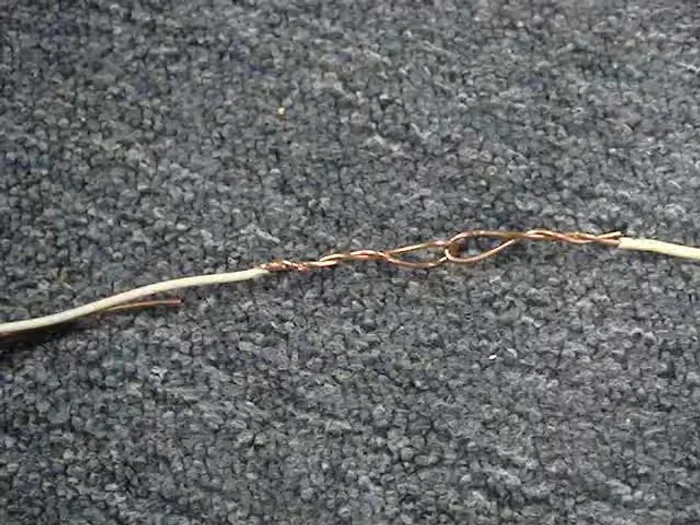

    • Create a strong connection between the pull wire and the new NM cable using loops and flattening.

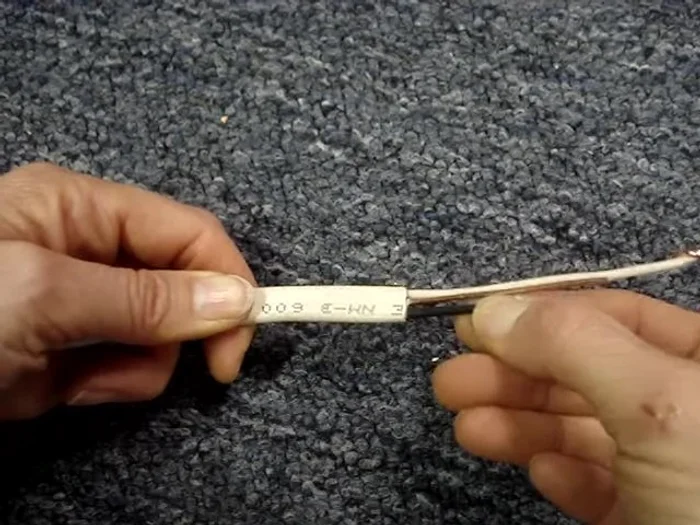

    • Create a taper on the NM cable end to prevent catching during pulling.
    Create a taper on the NM cable end to prevent catching during pulling.Create a taper on the NM cable end to prevent catching during pulling.
    Prepare New Cable

  4. Cable Installation

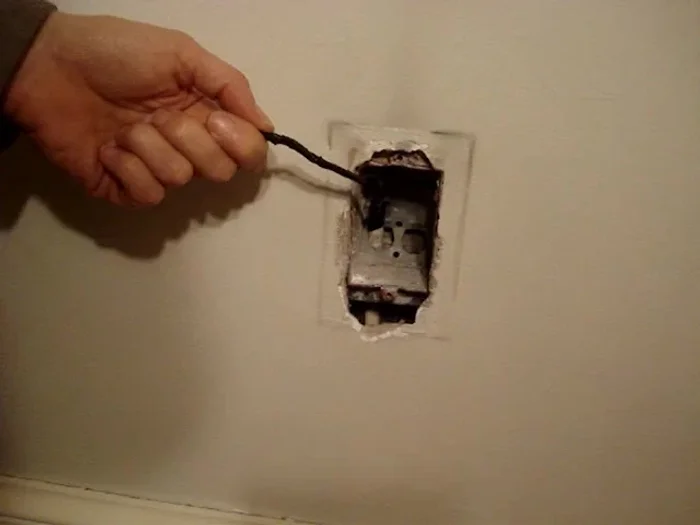

    • Pull the new NM cable through. If resistance is high, stop to avoid damage.
    Pull the new NM cable through. If resistance is high, stop to avoid damage.
    Cable Installation

  5. Wiring and Testing

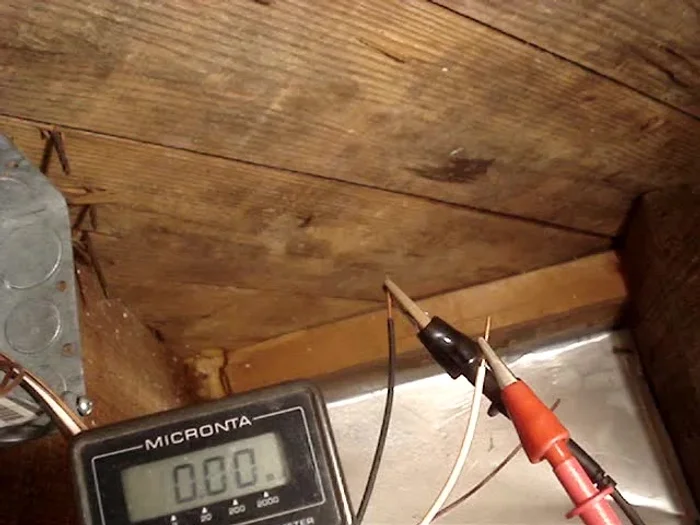

    • Once pulled through, connect the wires, and test for continuity.
    Once pulled through, connect the wires, and test for continuity.
    Wiring and Testing

Read more: Installing an Outdoor GFCI Receptacle: A Step-by-Step Guide

Tips

  • Always double-check power is off using a voltage tester.
  • If pulling the cable alone, create a strong loop connection between the new cable and the pull wire to minimize resistance.
  • Create a taper on the end of the new cable to reduce resistance and prevent damage.
  • If you encounter high resistance during pulling, do not force it as this might damage the cable.
  • Always test for continuity after connecting the wires.

Common Mistakes to Avoid

1. Incorrectly Identifying the Cable

Reason: Attempting to replace the wrong cable can lead to further complications and potentially damage other components.
Solution: Double-check the cable's path and connection points before disconnecting it.

2. Forcing Connections

Reason: Applying excessive force when disconnecting or connecting cables can damage the connectors or the cable itself.
Solution: Use gentle, even pressure and ensure the connectors are properly aligned before connecting or disconnecting.

3. Neglecting Safety Precautions

Reason: Working with electricity or in confined spaces without proper safety measures can lead to injury or further damage.
Solution: Always disconnect power to the device before working on it and use appropriate tools and safety equipment.
