Whole House Surge Protection Device Installation Guide

Updated at: 03/06/2025

Power surges, those sudden spikes in electrical voltage, are a silent threat to your home's electronics. From a momentary flicker to a complete system shutdown, these surges can cause significant damage, leading to costly repairs or even the complete loss of valuable appliances and devices. Protecting your investment is crucial, and a whole-house surge protection device (WHSPD) offers the most comprehensive defense against these potentially devastating events. Unlike outlet protectors, a WHSPD safeguards your entire electrical system, shielding everything from your refrigerator to your home entertainment center.

This guide provides a clear and concise step-by-step process for installing a whole-house surge protection device, ensuring you can effectively safeguard your home's electrical system and the valuable equipment it powers. Let's get started with the installation process, detailing each step to ensure a safe and successful outcome.

Preparation and Safety Guidelines

Tools Needed
  • Eaton surge protection device
  • Two-pole 15-amp breaker
  • Screwdrivers
  • Electrical gloves (recommended)
Safety Guidelines
  • Always turn off the main power breaker before beginning any electrical work. Failure to do so could result in serious injury or death.
  • Ensure you have the appropriate skills and knowledge for this task. If unsure, hire a qualified electrician. Improper installation can damage your electrical system and appliances.
  • Verify that the surge protector is rated for the amperage and voltage of your home's electrical system. Using an incorrectly rated device can cause damage or fire.

Step-by-Step Instructions

  1. Preparation and Mounting

    • Locate the best position to mount the SPD. Ideally, it should be near the main breaker, but any location with enough space will work.
    • Mount the SPD to the electrical panel using screws. Ensure it's securely fastened.

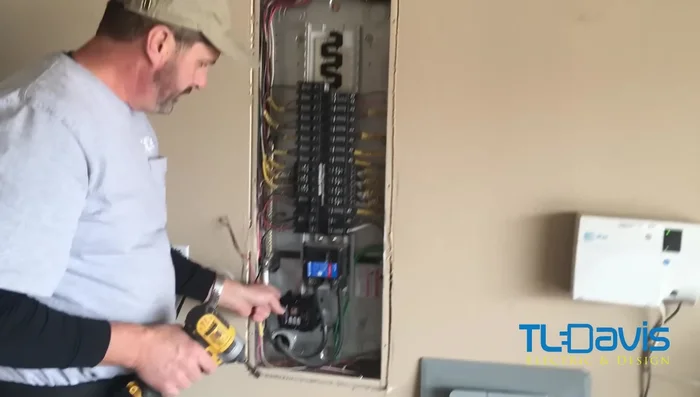

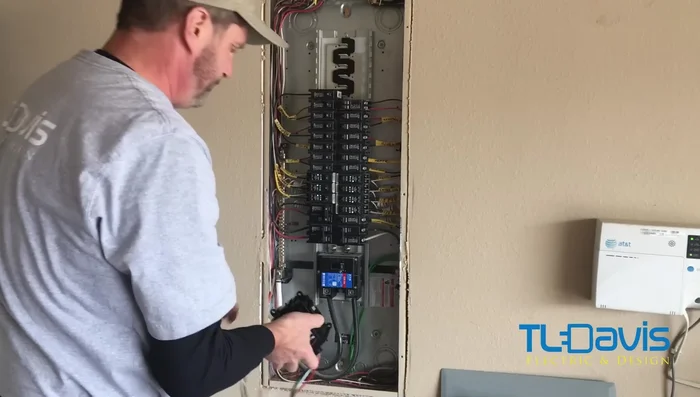

    • Relocate a breaker (e.g., the stove circuit) to create space for the SPD wiring.
    Relocate a breaker (e.g., the stove circuit) to create space for the SPD wiring.Relocate a breaker (e.g., the stove circuit) to create space for the SPD wiring.
    Preparation and Mounting

  2. Breaker Relocation

    • Safely remove the relocated breaker. Ensure the power is off to avoid arcing.
    • Move the relocated breaker to its new position in the panel.

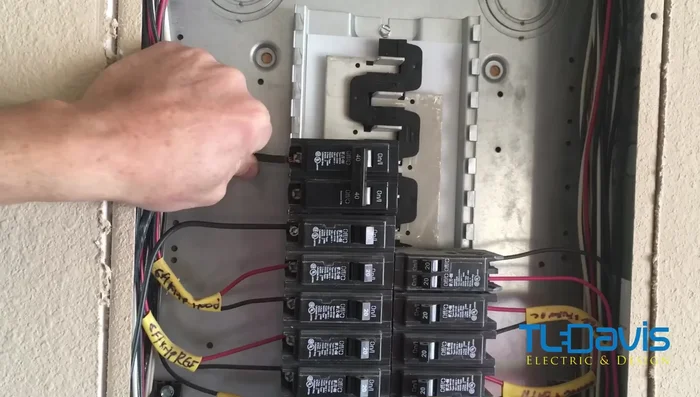

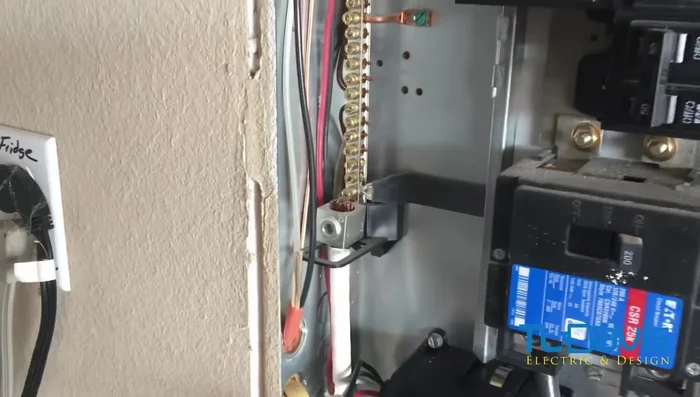

    • Reconnect the wires to the relocated breaker. Ensure the wires are fully inserted before tightening the screws.
    Reconnect the wires to the relocated breaker. Ensure the wires are fully inserted before tightening the screws.Reconnect the wires to the relocated breaker. Ensure the wires are fully inserted before tightening the screws.
    Breaker Relocation

  3. SPD Wiring

    • Wire the neutral and ground wires to the SPD. Avoid overlapping neutrals and grounds.

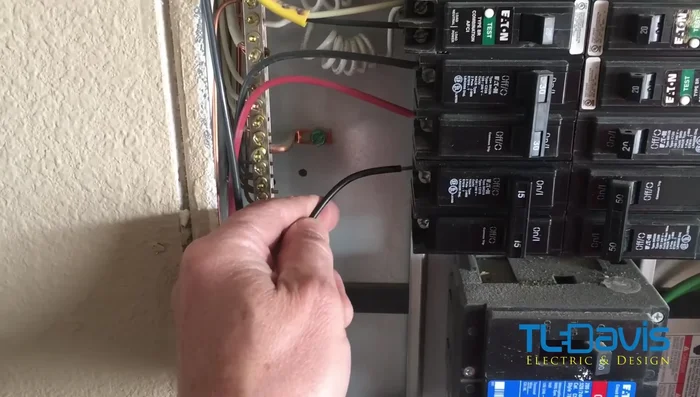

    • Connect the hot wires (red and black) to the SPD. Note that the order doesn't matter as both phases are covered.
    Connect the hot wires (red and black) to the SPD. Note that the order doesn't matter as both phases are covered.Connect the hot wires (red and black) to the SPD. Note that the order doesn't matter as both phases are covered.
    SPD Wiring

  4. Final Checks and Completion

    • Neaten the wires and ensure everything is secure.
    • Ensure the SPD is in the 'trip' position (off) and carefully flip the breaker to the 'on' position. Verify the green lights indicate that the system is functioning correctly.

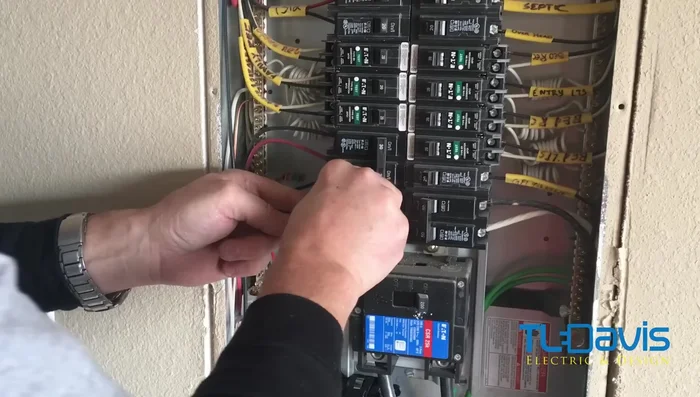

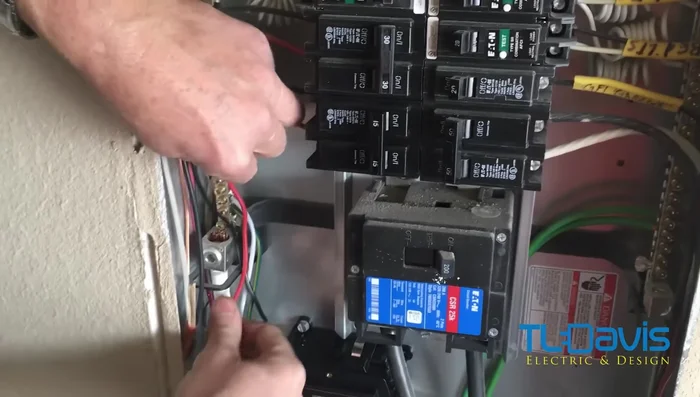

    • Replace the electrical panel cover.
    Replace the electrical panel cover.Replace the electrical panel cover.
    Final Checks and Completion

Read more: Installing an Outdoor GFCI Receptacle: A Step-by-Step Guide

Tips

  • Always turn off the main breaker before working with the electrical panel to prevent electric shock and arcing.
  • Use electrical gloves for added safety, especially if you are not a trained electrician.
  • Make sure wires are fully inserted before tightening screws on breakers.
  • Never hold onto the breaker while tightening the screws.
  • Ensure the SPD is in the 'trip' position before turning the breaker on.

Common Mistakes to Avoid

1. Incorrect Wiring

Reason: Improperly connecting the surge protector to the electrical panel's main power bus can lead to ineffective protection or even damage to the device and other components.
Solution: Ensure the surge protector is correctly wired to the main power bus according to the manufacturer's instructions and local electrical codes.

2. Ignoring Grounding

Reason: A poorly grounded surge protector will not effectively divert surge currents, leaving your electronics vulnerable to damage.
Solution: Verify a solid ground connection exists at the electrical panel and that the surge protector is properly grounded.

FAQs

Do I need to hire an electrician to install a whole-house surge protection device?
While technically possible for DIYers with some electrical experience, installing a whole-house surge protection device is best left to a qualified electrician. Improper installation can void warranties, create safety hazards, and even negate the surge protector's effectiveness. An electrician ensures correct wiring and grounding for optimal protection.
